C6,AL

Active

Serpac

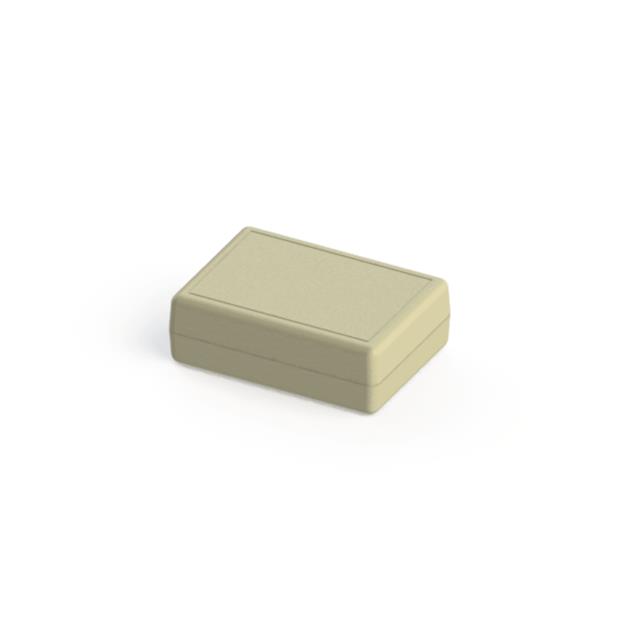

BOX ABS ALMOND 2.26"L X 1.61"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 2.26"L X 1.61"W

Technical Specifications

Parameters and characteristics for this part

Specification	C6,AL

Area (L x W) [custom]	3.64 in²
Area (L x W) [custom]	23.5 cm²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Height [z]	19.05 mm
Height [z]	0.75 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	57.4 mm
Size / Dimension [x]	2.26 "
Size / Dimension [y]	40.89 mm
Size / Dimension [y]	1.61 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	14.06 g
Weight	0.031 lb

Part	Area (L x W) [custom]	Area (L x W) [custom]	Color	Container Type	Height [z]	Height [z]	Material Flammability Rating	Design	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material	Ratings	Thickness	Thickness
Serpac C6,GY	3.64 in²	23.5 cm²	Gray	Box	19.05 mm	0.75 in	UL94 HB	Hand Held Split Sides	14.06 g	0.031 lb	40.89 mm	57.4 mm	1.61 "	2.26 "	Plastic ABS	IP40	2.54 mm	0.1 in
Serpac C6,TRBL	3.64 in²	23.5 cm²	Translucent - Blue	Box	19.05 mm	0.75 in	UL94 HB	Hand Held Split Sides	14.06 g	0.031 lb	40.89 mm	57.4 mm	1.61 "	2.26 "	Plastic ABS	IP40	1.52 mm	0.06 in
Serpac C6,TRGR	3.64 in²	23.5 cm²	Translucent - Green	Box	19.05 mm	0.75 in	UL94 HB	Hand Held Split Sides	14.06 g	0.031 lb	40.89 mm	57.4 mm	1.61 "	2.26 "	Plastic ABS	IP40	1.52 mm	0.06 in
Serpac C6,BK	3.64 in²	23.5 cm²	Black	Box	19.05 mm	0.75 in	UL94 HB	Hand Held Split Sides	14.06 g	0.031 lb	40.89 mm	57.4 mm	1.61 "	2.26 "	Plastic ABS	IP40	2.54 mm	0.1 in
Serpac C6,TRGY	3.64 in²	23.5 cm²	Translucent - Gray	Box	19.05 mm	0.75 in	UL94 HB	Hand Held Split Sides	14.06 g	0.031 lb	40.89 mm	57.4 mm	1.61 "	2.26 "	Plastic ABS	IP40	1.52 mm	0.06 in
Serpac C6,AL	3.64 in²	23.5 cm²	Almond	Box	19.05 mm	0.75 in	UL94 HB	Hand Held Split Sides	14.06 g	0.031 lb	40.89 mm	57.4 mm	1.61 "	2.26 "	Plastic ABS	IP40	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Almond Hand Held, Split Sides 2.260" L x 1.610" W (57.40mm x 40.89mm) X 0.750" (19.05mm)

Technical documentation and resources

No documents available
