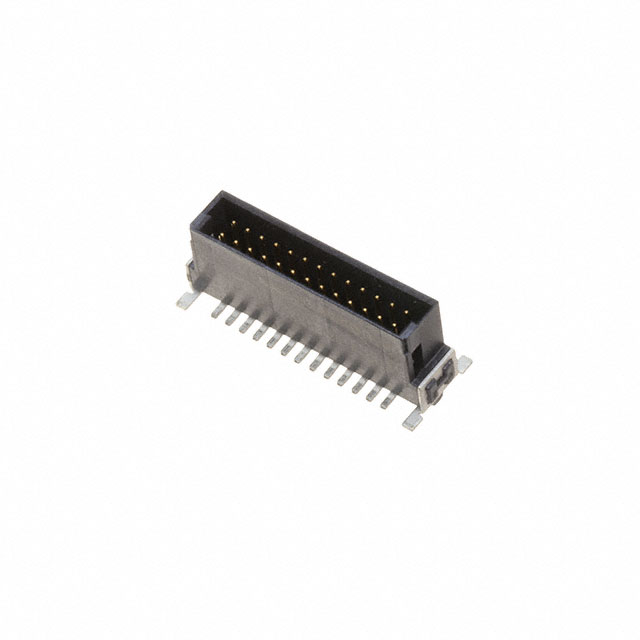

XH5E-2615-2N

Active

Omron Electronics Inc-EMC Div

PLUG, STRAIGHT, SMT PINS

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

PLUG, STRAIGHT, SMT PINS

Technical Specifications

Parameters and characteristics for this part

Specification	XH5E-2615-2N

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black
Insulation Height	8.1 mm
Insulation Height	0.319 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	9.5 mm, 12.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	100 VAC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Fastening Type	Contact Finish - Post	Style	Material Flammability Rating	Mated Stacking Heights	Mounting Type	Contact Material	Contact Shape	Shrouding	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Termination	Voltage Rating	Contact Type	Insulation Color	Contact Finish - Mating	Connector Type	Number of Positions	Number of Positions Loaded	Features	Pitch - Mating	Pitch - Mating	Number of Rows
Omron Electronics Inc-EMC Div XH5E-8015-2N	105 ░C	-55 °C	8.1 mm	0.319 in	Push-Pull	Tin	Board to Board Cable	UL94 V-0	9.5 mm 12.3 mm	Surface Mount	Copper Alloy	Square	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Solder	100 VAC	Male Pin	Black	Gold	Header	80	All	Board Guide Pick and Place Solder Retention	0.05 in	1.27 mm	2
Omron Electronics Inc-EMC Div XH5E-6815-1N	105 ░C	-55 °C	6.6 mm	0.26 in	Push-Pull	Tin	Board to Board Cable	UL94 V-0	8 mm 10.8 mm	Surface Mount	Copper Alloy	Square	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Solder	100 VAC	Male Pin	Black	Gold	Header	68	All	Board Guide Pick and Place Solder Retention	0.05 in	1.27 mm	2
Omron Electronics Inc-EMC Div XH5E-2615-2N	105 ░C	-55 °C	8.1 mm	0.319 in	Push-Pull	Tin	Board to Board Cable	UL94 V-0	9.5 mm 12.3 mm	Surface Mount	Copper Alloy	Square	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Solder	100 VAC	Male Pin	Black	Gold	Header	26	All	Board Guide Pick and Place Solder Retention	0.05 in	1.27 mm	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 26 position 0.050" (1.27mm)
