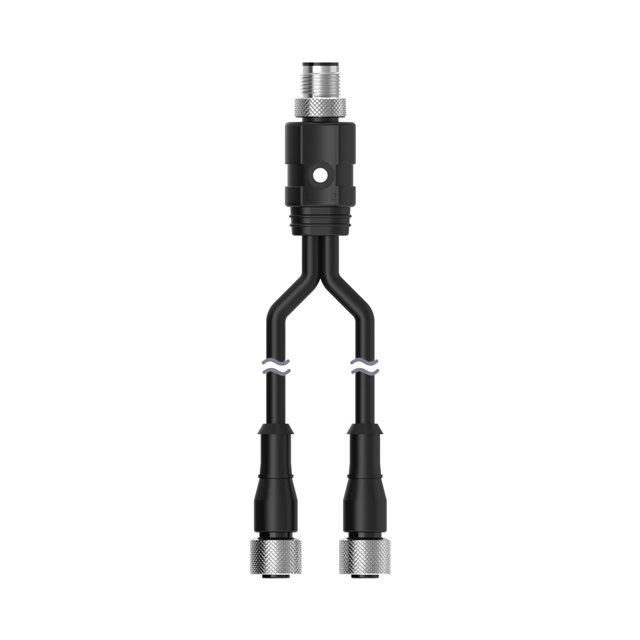

CSRB-M1240M1243

Active

BANNER ENGINEERING

SPLITTER M12M EURO TO M12F AND M12F CONNECTORS

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SPLITTER M12M EURO TO M12F AND M12F CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	CSRB-M1240M1243

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
2nd Connector Type	2
Assembly Configuration	Y-Adapter on One End
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round - Split
Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Length [x]	3 ft
Length [x]	914.4 mm
Shielding	Unshielded
Usage	Industrial Environments

Part	1st Connector Number of Positions Loaded	2nd Connector Type	2nd Connector Type	Shielding	1st Connector Number of Positions	Usage	Assembly Configuration	2nd Connector Shell Size - Insert	1st Connector Gender	1st Connector Type	1st Connector Shell Size - Insert	Cable Type	Cable Material	2nd Connector Mounting Type	1st Connector Orientation [custom]	1st Connector Mounting Type	2nd Connector Number of Positions Loaded	Ingress Protection	2nd Connector Gender	2nd Connector Number of Positions	Length [x]	Length [x]	Color	Length	Length
BANNER ENGINEERING CSRB-M1240M1243	All	Plug	2	Unshielded	4	Industrial Environments	Y-Adapter on One End	M12	Male Pins	Receptacle	M12	Round - Split	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Keyed	Free Hanging (In-Line)	All	IP68 - Dust Tight Waterproof	Female Sockets	4	3 ft	914.4 mm	Black
BANNER ENGINEERING CSRB-M1253.28M1253.28M1253.28	All	Plug		Unshielded	5	Industrial Environments	Y-Adapter on One End	M12	Male Pins	Receptacle (2)	M12	Round - Split	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Keyed	Free Hanging (In-Line)	All	IP68 - Dust Tight Waterproof	Female Sockets	5	6.56 ft	2 m	Black
BANNER ENGINEERING CSRB-M1240M1244	All	Plug	2	Unshielded	4	Industrial Environments	Y-Adapter on One End	M12	Male Pins	Receptacle	M12	Round - Split	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Keyed	Free Hanging (In-Line)	All	IP68 - Dust Tight Waterproof	Female Sockets	4			Black	6 ft	1.83 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 89.00
Newark	Each	1	$ 91.00

General part information

Circular Cable Assembly Unshielded 3.00' (914.40mm)

Technical documentation and resources

No documents available
