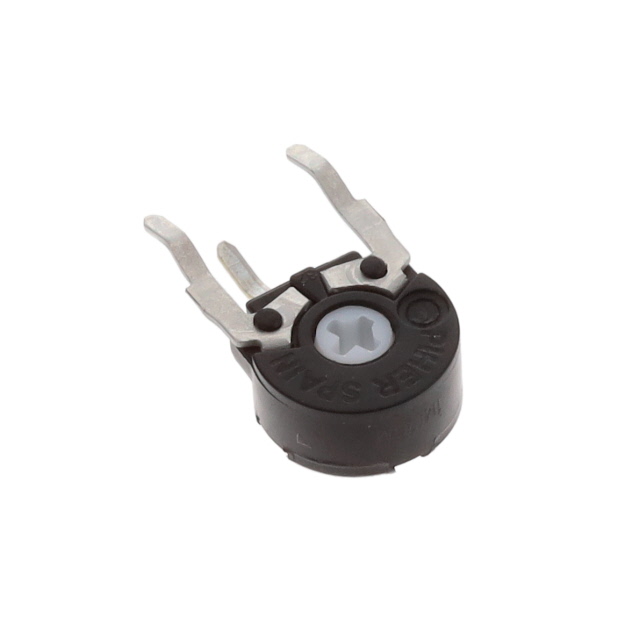

PT6KH-105A2020

Active

Amphenol Piher Sensing Systems

TRIMMER 1M OHM 0.1W PC PIN SIDE

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

TRIMMER 1M OHM 0.1W PC PIN SIDE

Technical Specifications

Parameters and characteristics for this part

Part	Adjustment Type	Tolerance	Termination Style	Number of Turns	Resistive Material	Resistance	Mounting Type	Temperature Coefficient	Power (Watts)	Power (Watts)	Size / Dimension [diameter]	Size / Dimension [diameter]
Amphenol Piher Sensing Systems PT6KH-221A2020	Side Adjustment	20 %	PC Pins	1	Carbon	220 Ohms	Through Hole	300 ppm/°C	0.1 W	0.1 W
Amphenol Piher Sensing Systems PT6KH-504B2020	Side Adjustment	20 %	PC Pins	1	Carbon		Through Hole	300 ppm/°C	0.1 W	0.1 W	0.248 in	6.3 mm
Amphenol Piher Sensing Systems PT6KH-253A2020	Side Adjustment	20 %	PC Pins	1	Carbon	25 kOhms	Through Hole	300 ppm/°C	0.1 W	0.1 W	0.248 in	6.3 mm
Amphenol Piher Sensing Systems PT6KH-254A2020	Side Adjustment	20 %	PC Pins	1	Carbon	250 kOhms	Through Hole	300 ppm/°C	0.1 W	0.1 W
Amphenol Piher Sensing Systems PT6KH-472A2020	Side Adjustment	20 %	PC Pins	1	Carbon	4.7 kOhms	Through Hole	300 ppm/°C	0.1 W	0.1 W
Amphenol Piher Sensing Systems PT6KH-102A2020	Side Adjustment	20 %	PC Pins	1	Carbon	1000 Ohms	Through Hole	300 ppm/°C	0.1 W	0.1 W
Amphenol Piher Sensing Systems PT6KH-503A2020-PM	Side Adjustment	20 %	PC Pins	1	Carbon	50 kOhms	Through Hole	300 ppm/°C	0.1 W	0.1 W	0.248 in	6.3 mm
Amphenol Piher Sensing Systems PT6KH-224A2020	Side Adjustment	20 %	PC Pins	1	Carbon	220 kOhms	Through Hole	300 ppm/°C	0.1 W	0.1 W
Amphenol Piher Sensing Systems PT6KH-105A2020	Side Adjustment	30 %	PC Pins	1	Carbon	1 MOhms	Through Hole	300 ppm/°C	0.1 W	0.1 W
Amphenol Piher Sensing Systems PT6KH-501A2020	Side Adjustment	20 %	PC Pins	1	Carbon	500 Ohms	Through Hole	300 ppm/°C	0.1 W	0.1 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 MOhms 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
