BU-34M

Active

Mueller Electric Co

MICRO ALLIGATOR CLIP, 5.6 MM, 5 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BU-34M

Active

Mueller Electric Co

MICRO ALLIGATOR CLIP, 5.6 MM, 5 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-34M

Color	Natural
Current Rating (Amps)	5 A
Insulation	Non-Insulated
Jaw Opening	5.59 mm
Jaw Opening	0.22 in
Length	1.09 in
Length	27.69 mm
Material	Copper
Quantity	1 Box
Termination	Crimp or Solder
Type	Alligator, Micro

BU-34 Series

Part	Length	Length	Termination	Jaw Opening	Jaw Opening	Material	Current Rating (Amps)	Color	Type	Insulation	Quantity
Mueller Electric Co BU-34X	1.09 in	27.69 mm	Crimp	5.59 mm	0.22 in	Stainless Steel	5 A	Natural	Alligator Micro	Non-Insulated	1 Box
Mueller Electric Co BU-34C	1.09 in	27.69 mm	Crimp or Solder	5.59 mm	0.22 in	Copper	5 A	Natural	Alligator Micro	Non-Insulated	1 Box
Mueller Electric Co BU-34M	1.09 in	27.69 mm	Crimp or Solder	5.59 mm	0.22 in	Copper	5 A	Natural	Alligator Micro	Non-Insulated	1 Box

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.26
		10	$ 1.03
		100	$ 0.98
		500	$ 0.95
		1000	$ 0.94
Newark	Each	1	$ 1.45
		100	$ 1.35
		500	$ 1.27
		1000	$ 1.16
		2500	$ 1.06

Description

General part information

BU-34 Series

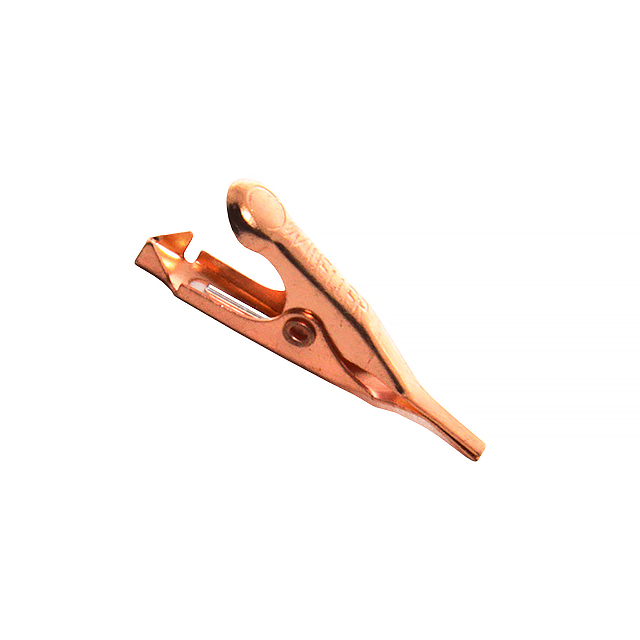

The BU-34M from Mueller Electric is a micro-alligator clip with smooth jaws. It is designed to thrive in coastal/marine environments. The solid copper and stainless steel construction provide excellent corrosion resistance. Salt water testing has shown that this clip will last up to five times longer than traditional steel or copper clips. Uses BU-36 Series Insulators.
