09150083113

Active

HARTING Technology Group

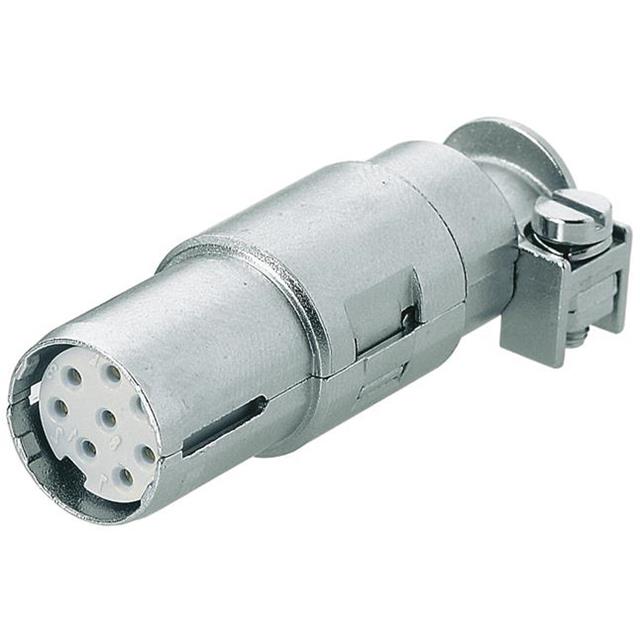

HEAVY DUTY CONNECTOR, HAN-QUINTAX SERIES, INSERT, 8 CONTACTS, RECEPTACLE

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-QUINTAX SERIES, INSERT, 8 CONTACTS, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	09150083113

Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	5 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	50 V

Part	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector Type	Material Flammability Rating	Gender	Termination Style	Housing Material	Current Rating (Amps)	Contact Type
HARTING Technology Group 09150083113	8	85 °C	-40 °C	50 V	Insert without Contacts	UL94 V-0	Female	Crimp	Polycarbonate (PC)	5 A	Han®

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts 8 Position Crimp
