09628061541

Obsolete

HARTING Technology Group

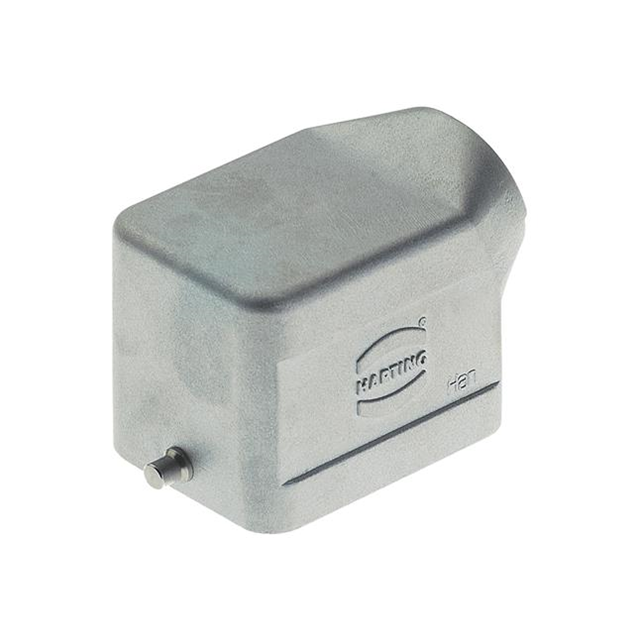

CONN HOOD SIDE ENTRY SZ6B PG16

Search across all available documentation for this part.

Obsolete

HARTING Technology Group

CONN HOOD SIDE ENTRY SZ6B PG16

Technical Specifications

Parameters and characteristics for this part

Specification	09628061541

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	2.362 in
Size / Dimension [x]	60 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	46 mm
Size / Dimension [z]	1.811 in
Style	Side Entry
Thread Size	PG16

Part	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Ingress Protection	Connector Type	Style	Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Thread Size
HARTING Technology Group 09628061291
HARTING Technology Group 09628061441	Aluminum Die Cast	125 °C	-40 °C	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Top Entry	6B	60 mm	1.575 in	40 mm	43 mm	1.693 in	2.362 in	PG16
HARTING Technology Group 09628061302
HARTING Technology Group 09628061541	Aluminum Die Cast	125 °C	-40 °C	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Side Entry	6B	60 mm	1.811 in	46 mm	43 mm	1.693 in	2.362 in	PG16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Hood Connector Side Entry PG16 6B IP65 - Dust Tight, Water Resistant
