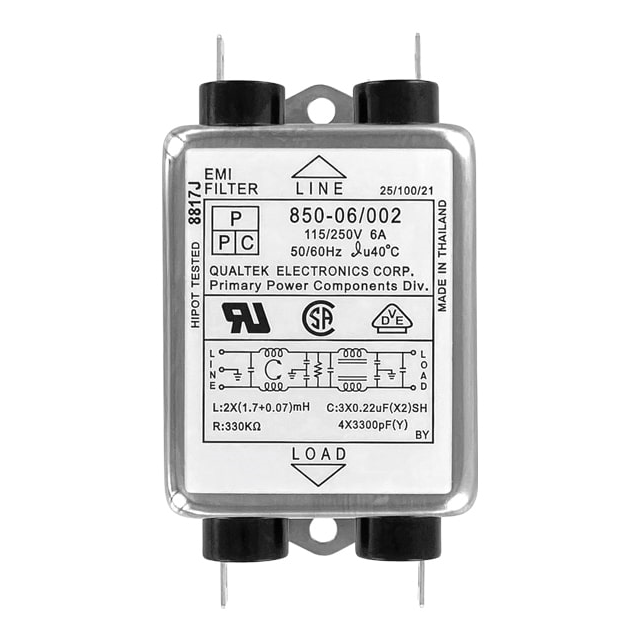

850-06/002

Active

Qualtek

LINE FILTER 115V/250VAC 6A CHAS

Search across all available documentation for this part.

Active

Qualtek

LINE FILTER 115V/250VAC 6A CHAS

Technical Specifications

Parameters and characteristics for this part

Specification	850-06/002

Applications	General Purpose
Approval Agency	VDE, CSA, UR
Configuration	Two Stage
Current	6 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	1.7 mH, 70 µH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Quick Connect
Voltage - Rated AC	115 V, 250 V

Part	Configuration	Applications	Approval Agency	Operating Temperature [custom]	Mounting Type	Inductance	Filter Type	Termination Style	Current	Voltage - Rated AC	Frequency - Operating [Max]	Frequency - Operating [Min]
Qualtek 850-06/002	Two Stage	General Purpose	CSA UR VDE	-25 °C 100 °C	Chassis Mount	1.7 mH 70 µH	Single Phase	Quick Connect	6 A	115 V 250 V	60 Hz	50 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 16.20

General part information

Single Phase EMC/EMI Line Filter 6 A 115V, 250V 50/60Hz Two Stage Quick Connect
