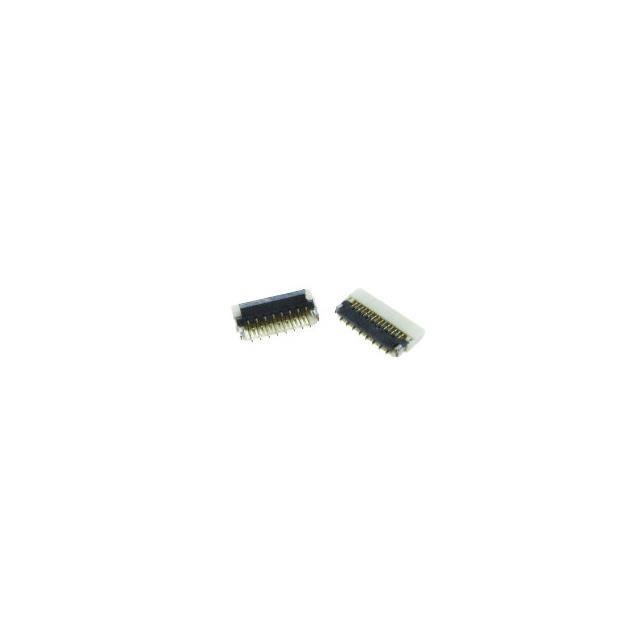

PCA-7F-15-HL-3-G

Active

Adam Tech

CONN FFC BOTTOM 15POS 0.3MM R/A

Search across all available documentation for this part.

Active

Adam Tech

CONN FFC BOTTOM 15POS 0.3MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	PCA-7F-15-HL-3-G

Actuator Color	Black
Actuator Material	Thermoplastic
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	300 mA
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Color	Natural
Housing Material	Thermoplastic
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	15
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	30 VDC

Part	Number of Positions	Current Rating (Amps)	Flat Flex Type	Actuator Material	Features	Housing Color	Contact Finish Thickness	Contact Finish	Pitch [x]	Pitch [x]	Termination	Mounting Type	Cable End Type	Actuator Color	Height Above Board [z]	Height Above Board [z]	Connector/Contact Type	Contact Material	Locking Feature	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness	Material Flammability Rating	Housing Material	Voltage Rating
Adam Tech PCA-7F-09-HL-3-G	9	300 mA	FFC FPC	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	Natural	Flash	Gold	0.012 in	0.3 mm	Solder	Surface Mount Right Angle	Tapered	Black	1 mm	0.039 in	Contacts Bottom	Copper Alloy	Flip Lock	-25 °C	85 °C	0.2 mm	UL94 V-0	Thermoplastic	30 VDC
Adam Tech PCA-7F-15-HL-3-G	15	300 mA	FFC FPC	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	Natural	Flash	Gold	0.012 in	0.3 mm	Solder	Surface Mount Right Angle	Tapered	Black	1 mm	0.039 in	Contacts Bottom	Copper Alloy	Flip Lock	-25 °C	85 °C	0.2 mm	UL94 V-0	Thermoplastic	30 VDC
Adam Tech PCA-7F-13-HL-3-G	13	300 mA	FFC FPC	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	Natural	Flash	Gold	0.012 in	0.3 mm	Solder	Surface Mount Right Angle	Tapered	Black	1 mm	0.039 in	Contacts Bottom	Copper Alloy	Flip Lock	-25 °C	85 °C	0.2 mm	UL94 V-0	Thermoplastic	30 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.45

General part information

15 Position FFC, FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
