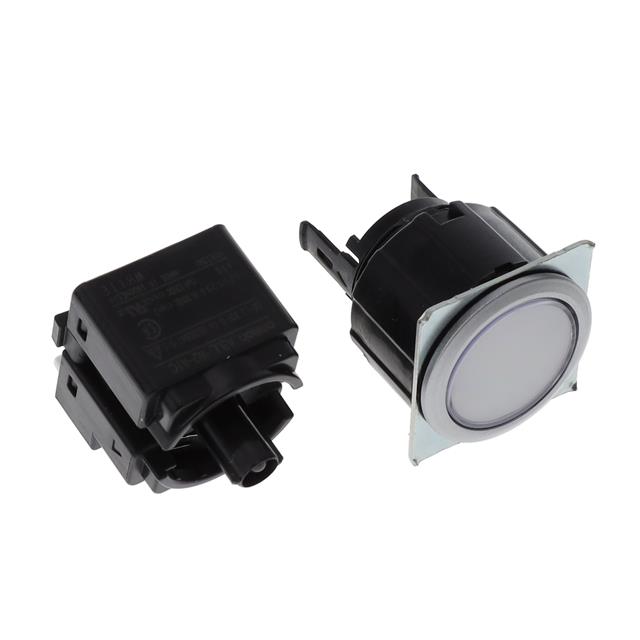

A3UL-TMW-2A1C-5M

Active

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON SPDT 0.1A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A3UL-TMW-2A1C-5M

Active

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON SPDT 0.1A 30V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A3UL-TMW-2A1C-5M

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	200000 Cycles
Illumination Type, Color	White, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP65
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25.2 mm
Switch Function	On-Mom
Termination Style	Connector
Type	Illuminated, Standard
Voltage Rating - DC	30 V

A3UL-TMW Series

Part	Color - Actuator/Cap	Type	Voltage Rating - DC	Termination Style	Electrical Life	Mechanical Life	Actuator Type	Panel Cutout Dimensions [diameter]	Ingress Protection	Switch Function	Current Rating (Amps)	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mounting Type	Actuator Marking	Illumination Voltage (Nominal)
Omron Electronics Inc-EMC Div A3UL-TMW-3A1C-5M	Clear	Illuminated Standard	30 V	Connector	200000 Cycles	1000000 Cycles	Button Flush Round	25.2 mm	IP65	On-Mom	100 mA	LED White	55 °C	-20 C	SPDT	Panel Mount Front	No Marking	24 V
Omron Electronics Inc-EMC Div A3UL-TMW-2A2C-5M	Clear	Illuminated Standard	30 V	Connector	200000 Cycles	1000000 Cycles	Button Flush Round	25.2 mm	IP65	On-Mom	100 mA	LED White	55 °C	-20 C	DPDT	Panel Mount Front	No Marking	12 VDC
Omron Electronics Inc-EMC Div A3UL-TMW-1A2C-5M	Clear	Illuminated Standard	30 V	Connector	200000 Cycles	1000000 Cycles	Button Flush Round	25.2 mm	IP65	On-Mom	100 mA	LED White	55 °C	-20 C	DPDT	Panel Mount Front	No Marking	5 VDC
Omron Electronics Inc-EMC Div A3UL-TMW-1A1C-M	Clear	Illuminated Standard	30 V	Connector	200000 Cycles	1000000 Cycles	Button Flush Round	25.2 mm	IP40	On-Mom	100 mA	LED White	55 °C	-20 C	SPDT	Panel Mount Front	No Marking	5 VDC
Omron Electronics Inc-EMC Div A3UL-TMW-2A1C-5M	Clear	Illuminated Standard	30 V	Connector	200000 Cycles	1000000 Cycles	Button Flush Round	25.2 mm	IP65	On-Mom	100 mA	LED White	55 °C	-20 C	SPDT	Panel Mount Front	No Marking	12 VDC
Omron Electronics Inc-EMC Div A3UL-TMW-3A2C-5M	Clear	Illuminated Standard	30 V	Connector	200000 Cycles	1000000 Cycles	Button Flush Round	25.2 mm	IP65	On-Mom	100 mA	LED White	55 °C	-20 C	DPDT	Panel Mount Front	No Marking	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.06
		10	$ 38.00
		25	$ 35.82
		50	$ 34.26
		100	$ 32.76
		250	$ 30.87

Description

General part information

A3UL-TMW Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
