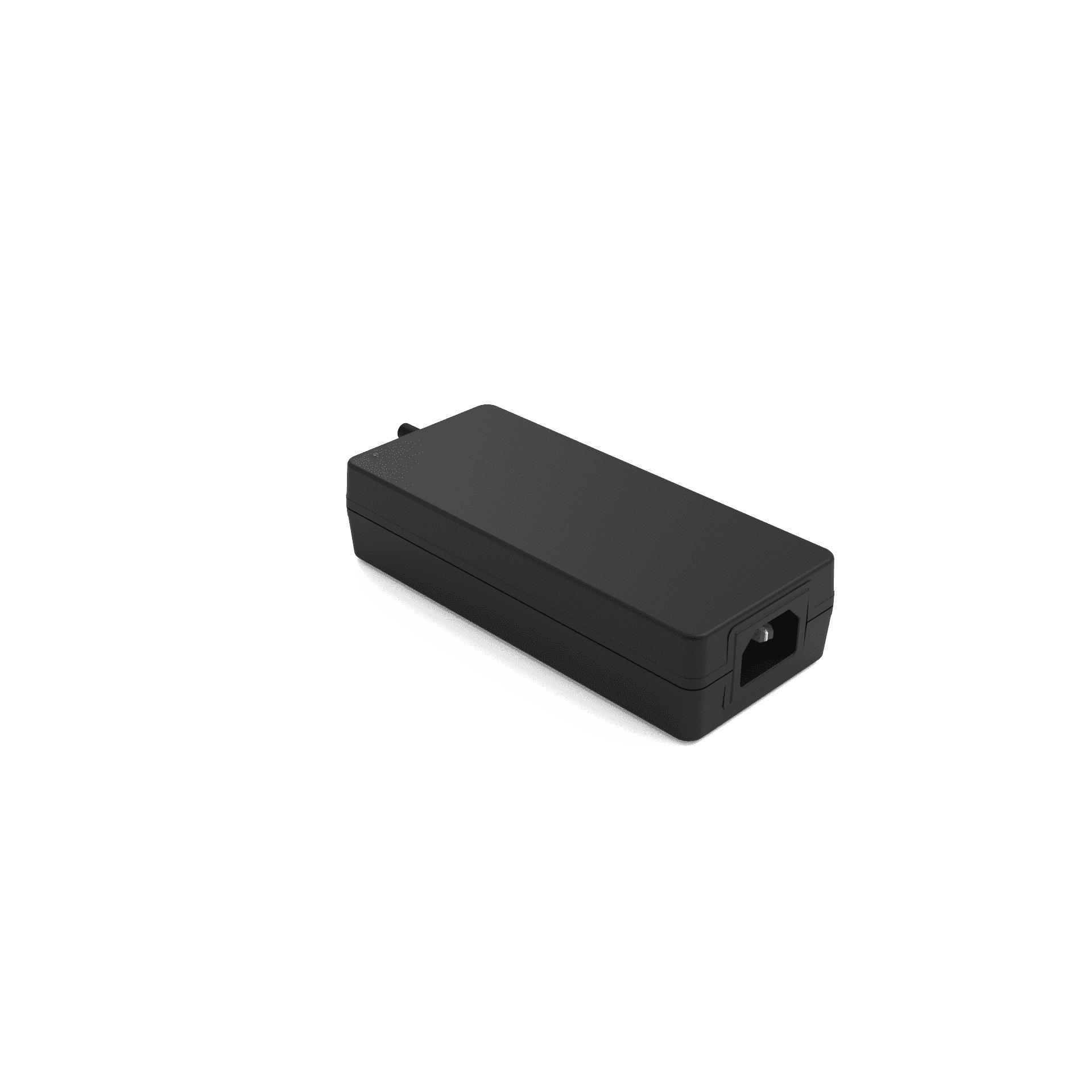

AA90U-190B-R

Active

Phihong USA

AC/DC DESKTOP ADAPTER 19V 90W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AA90U-190B-R

Active

Phihong USA

AC/DC DESKTOP ADAPTER 19V 90W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AA90U-190B-R

Applications	ITE (Commercial)
Approval Agency	cULus, UKCA, cUL, CE
Cord Length	47 "
Cord Length	1.2 m
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	115 mW
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	90 W
Region Utilized	International
Size / Dimension [x]	5.57 in
Size / Dimension [x]	141.5 mm
Size / Dimension [y]	62.5 mm
Size / Dimension [y]	2.46 "
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	19 V

AA90 Series

Part	Input Connector	Voltage - Output	Approval Agency	Standard Number	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	No Load Power Consumption	Power (Watts)	Form	Output Connector [diameter]	Output Connector [x]	Output Connector	Region Utilized	Efficiency	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Applications	Polarization	No Load Power Consumption [Max]
Phihong USA AA90U-240B-R	IEC 320-C14	24 V	CE cUL cULus UKCA	62368-1	1.5 m	59 in	90 VAC	264 VAC	Cord	124 mW	90 W	Desktop (Class I)	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	International	Level VI	-10 °C	158 °F	33 mm	62.5 mm	1.3 "	5.57 in	2.46 "	141.5 mm	3.75 A	ITE (Commercial)	Positive Center
Phihong USA AA90U-120B-R	IEC 320-C14	12 V	CE cUL cULus UKCA	62368-1	1.2 m	47 "	90 VAC	264 VAC	Cord	85 mW	90 W	Desktop (Class I)	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	International	Level VI	-10 °C	158 °F	33 mm	62.5 mm	1.3 "	5.57 in	2.46 "	141.5 mm	7.5 A	ITE (Commercial)	Positive Center
Phihong USA AA90U-540B-R	IEC 320-C14	54 V	CE cUL cULus UKCA	62368-1	1.5 m	59 in	90 VAC	264 VAC	Cord		90 W	Desktop (Class I)	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	International	Level VI	-10 °C	158 °F	33 mm	62.5 mm	1.3 "	5.57 in	2.46 "	141.5 mm	1.67 A	ITE (Commercial)	Positive Center	150 mW
Phihong USA AA90U-480B-R	IEC 320-C14	48 V	CE cUL cULus UKCA	62368-1	1.5 m	59 in	90 VAC	264 VAC	Cord	137 mW	90 W	Desktop (Class I)	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	International	Level VI	-10 °C	158 °F	33 mm	62.5 mm	1.3 "	5.57 in	2.46 "	141.5 mm	1.875 A	ITE (Commercial)	Positive Center
Phihong USA AA90U-190B-R	IEC 320-C14	19 V	CE cUL cULus UKCA	62368-1	1.2 m	47 "	90 VAC	264 VAC	Cord		90 W	Desktop (Class I)	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	International	Level VI	-10 °C	158 °F	33 mm	62.5 mm	1.3 "	5.57 in	2.46 "	141.5 mm		ITE (Commercial)	Positive Center	115 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.64
		5	$ 30.17
		10	$ 29.70
		25	$ 28.29
		50	$ 27.34
		100	$ 25.46
		250	$ 25.08

Description

General part information

AA90 Series

19V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
