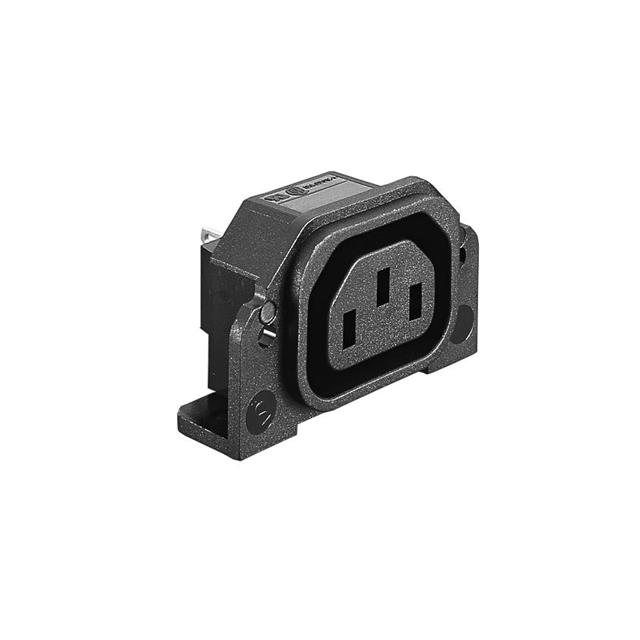

PX0675/PC/12599

Active

BULGIN LIMITED

PWR ENT RCPT IEC320-2-2F PANEL

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT RCPT IEC320-2-2F PANEL

Technical Specifications

Parameters and characteristics for this part

Specification	PX0675/PC/12599

Accomodates a Fuse	False
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-2-2/F
Connector Type	Receptacle, Female Sockets
Current Rating - Appliance Inlet	10 A
Features	Terminating Cover
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	34.7 mm
Panel Cutout Dimensions [y]	26.4 mm
Panel Thickness [custom]	0.126 in
Panel Thickness [custom]	3.2 mm
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Mounting Type	Approval Agency	Connector Style	Termination	Termination	Termination	Accomodates a Fuse	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Material Flammability Rating	Filter Type	Features	Panel Thickness [custom]	Panel Thickness [custom]
BULGIN LIMITED PX0675/63	Receptacle Female Sockets	Flange Panel Mount	CSA ENEC UL VDE	IEC 320-2-2/F	0.25 in	6.3 mm	Quick Connect		24.77 mm	32.26 mm	10 A	250 VAC	UL94 V-0	Unfiltered - Commercial
BULGIN LIMITED PX0675/PC/12599	Receptacle Female Sockets	Panel Mount Flange Through Hole Right Angle	CSA ENEC UL VDE	IEC 320-2-2/F			Solder		26.4 mm	34.7 mm	10 A	250 VAC	UL94 V-0	Unfiltered - Commercial	Terminating Cover	0.126 in	3.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/F Panel Mount, Flange; Through Hole, Right Angle

Technical documentation and resources

No documents available
