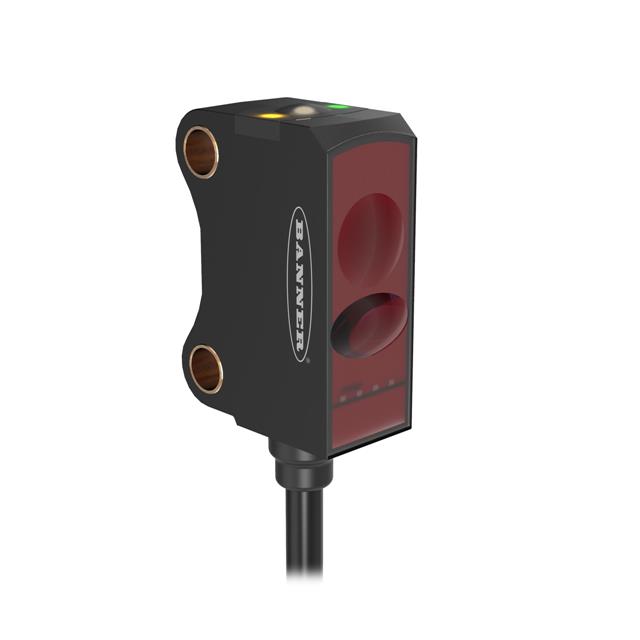

VS8APFF15Q3

Active

BANNER ENGINEERING

VS8 SERIES: FIXED FIELDRANGE

Search across all available documentation for this part.

Active

BANNER ENGINEERING

VS8 SERIES: FIXED FIELDRANGE

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Distance	Sensing Distance	Response Time	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Connection Method
BANNER ENGINEERING VS8APFF15Q3	15 mm	0.591 "	500 µs	NEMA 6P IEC IP67	-20 C	60 °C	PNP - Light-ON	Background Suppression	30 VDC	10 VDC	RED (650nm)	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 175.00
Newark	Each	1	$ 184.00

General part information

Background Suppression Optical Sensor 0.591" (15mm) PNP - Light-ON
