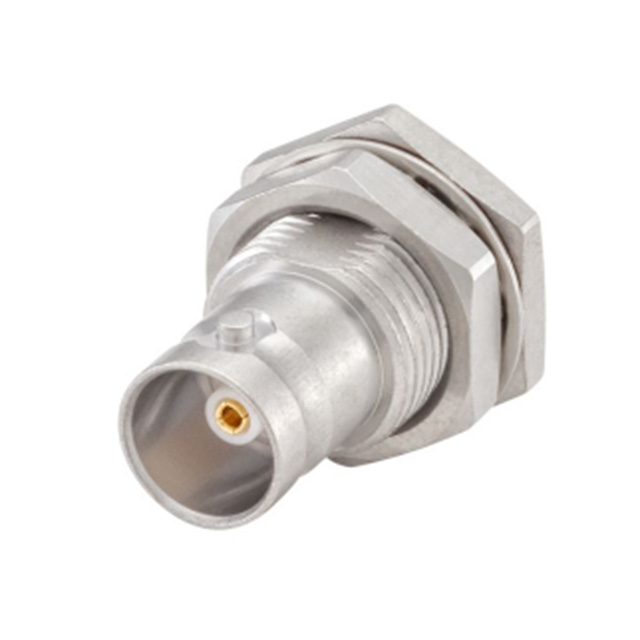

71K607-802N5

Active

Rosenberger

CONN BNC JACK STR 75OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN BNC JACK STR 75OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	71K607-802N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	187A, RG-179B
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	400 V

Part	Mating Cycles	Cable Group	Impedance	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Includes	Center Contact Material	Center Contact Plating	Housing Color	Frequency - Max [Max]	Contact Termination	Number of Ports	Voltage Rating	Body Material	Connector Style	Mounting Feature	Dielectric Material	Body Finish	Shield Termination
Rosenberger 71K607-802N5	500	187A RG-179B	75 Ohms	Bayonet Lock	155 °C	-55 °C	Female Socket Jack	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Beryllium Copper	Gold	Silver	4 GHz	Crimp	1	400 V	Brass	BNC	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	White Bronze	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount Crimp
