R316011000

Active

Radiall USA, Inc.

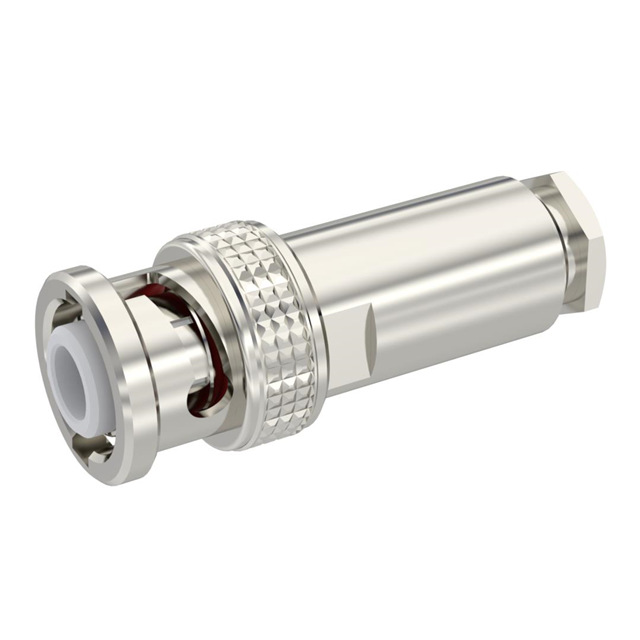

RF BNC CONNECTOR, MALE, CABLE MOUNT, CLAMP TERMINAL, PLUG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF BNC CONNECTOR, MALE, CABLE MOUNT, CLAMP TERMINAL, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	R316011000

Body Finish	Nickel
Body Material	Brass
Cable Group	62, RG-59
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp

Part	Impedance	Housing Color	Frequency - Max [Max]	Dielectric Material	Connector Type	Fastening Type	Connector Style	Mounting Type	Contact Termination	Cable Group	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Center Contact Plating	Shield Termination	Body Finish	Body Material	Center Contact Material
Radiall USA, Inc. R316011000	50 Ohms	Silver	2 GHz	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Bayonet Lock	BNC	Free Hanging (In-Line)	Solder	62 RG-59	1	155 °C	-55 °C	500	Silver	Clamp	Nickel	Brass	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
