VCA8500BOARD

Obsolete

Texas Instruments

BOARD DEV FOR VCA8500

Search across all available documentation for this part.

Obsolete

Texas Instruments

BOARD DEV FOR VCA8500

Technical Specifications

Parameters and characteristics for this part

Specification	VCA8500BOARD

-3db Bandwidth	55 MHz
Board Type	Fully Populated
Channels per IC	8
Current - Output / Channel	20 mA
Current - Supply (Main IC)	145 mA
Output Type	Differential
Supplied Contents	Cable(s), Board(s)
Utilized IC / Part	VCA8500
Voltage - Supply, Single/Dual (±) [Max]	3.6 V, 5.25 V
Voltage - Supply, Single/Dual (±) [Min]	4.75 V, 3.15 V

Part	Voltage - Supply Span (Max) [Max]	Voltage - Supply Span (Min) [Min]	Current - Output / Channel	Gain Bandwidth Product	Supplier Device Package	Package / Case	Current - Supply	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	-3db Bandwidth	Voltage - Input Offset	Number of Circuits [custom]	Channels per IC	Board Type	Current - Supply (Main IC)	Utilized IC / Part	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Supplied Contents
Texas Instruments VCA8500IRGCT	5.25 V	3.15 V	20 mA	15 MHz	64-VQFN (9x9)	64-VFQFN Exposed Pad	10 µA	Differential	85 °C	-40 °C	Surface Mount	55 MHz	1 mV	8
Texas Instruments VCA8500IRGCR	5.25 V	3.15 V	20 mA	15 MHz	64-VQFN (9x9)	64-VFQFN Exposed Pad	10 µA	Differential	85 °C	-40 °C	Surface Mount	55 MHz	1 mV	8
Texas Instruments VCA8500BOARD			20 mA					Differential				55 MHz			8	Fully Populated	145 mA	VCA8500	3.6 V 5.25 V	3.15 V 4.75 V	Board(s) Cable(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

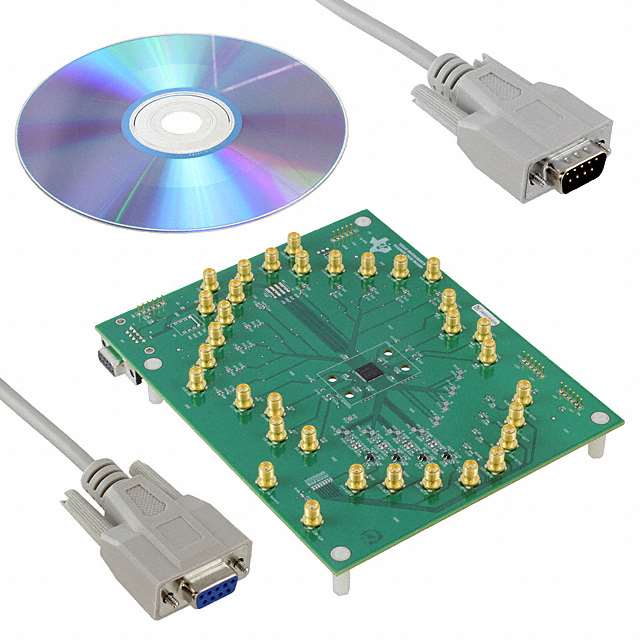

VCA8500 8 - Octal Channels per IC Variable Gain Amplifier Evaluation Board
