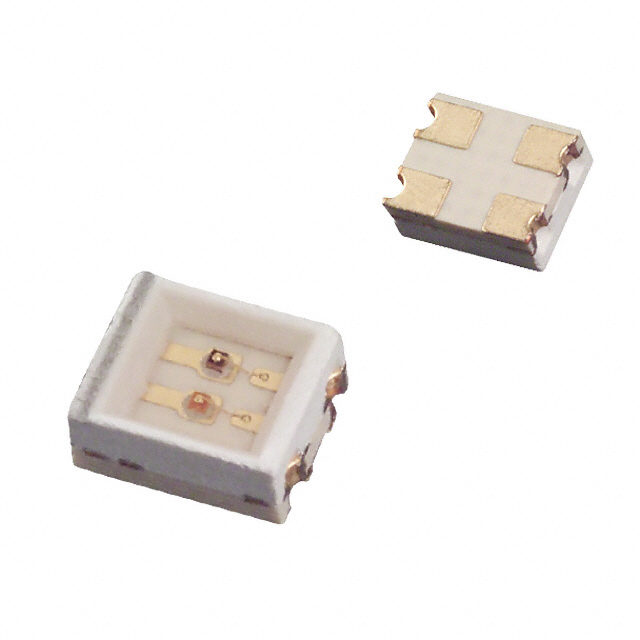

SML-020MDTT86
ActiveRohm Semiconductor
BI-COLOR SURFACE EMITTING TYPE, CHIP LED WITH REFLECTOR (YELLOW-GREEN/ORANGE)
Deep-Dive with AI
Search across all available documentation for this part.
SML-020MDTT86
ActiveRohm Semiconductor
BI-COLOR SURFACE EMITTING TYPE, CHIP LED WITH REFLECTOR (YELLOW-GREEN/ORANGE)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-020MDTT86 |
|---|---|
| Color | Orange, Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] | 1.5 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2.3 mm |
| Lens Size [y] | 2.1 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 10 mcd, 20 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 2.5 mm |
| Supplier Device Package | 1210 (3025 Metric) |
| Voltage - Forward (Vf) (Typ) | 2.2 V, 2 V |
| Wavelength - Peak | 570 nm, 610 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 0.28 | |
| 5000 | $ 0.27 | |||
| 12500 | $ 0.27 | |||
| 25000 | $ 0.26 | |||
Description
General part information
SML-020MYT Series
SML-020 series is a reflector type surface mount LED.
