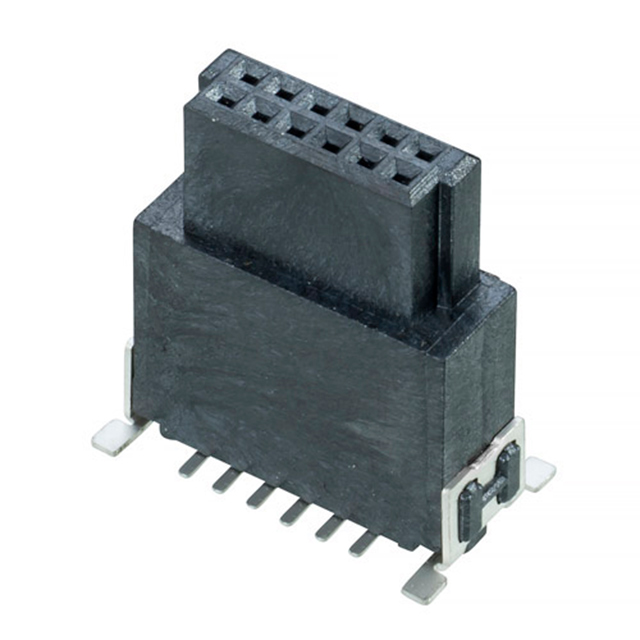

M55-6021242R

Active

Harwin Inc.

CONN, RCPT, 12POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM55-6001242R Datasheet +1

M55-6021242R

Active

Harwin Inc.

CONN, RCPT, 12POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM55-6001242R Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M55-6021242R

Applications	Industrial, General Purpose, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Female Socket
Current Rating (Amps)	1.2 A
Fastening Type	Latch Holder
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black
Insulation Height	0.537 in
Insulation Height	13.64 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	15.4 mm, 16.9 mm, 18.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder
Voltage Rating	100 VAC

M55-602 Series

Part	Contact Finish - Mating	Applications	Current Rating (Amps)	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Finish - Post	Mated Stacking Heights	Number of Positions	Contact Type	Insulation Material	Material Flammability Rating	Features	Insulation Height	Insulation Height	Contact Shape	Mounting Type	Number of Rows	Insulation Color	Number of Positions Loaded	Fastening Type	Termination	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating
Harwin Inc. M55-6022642R	Gold	Automotive General Purpose Industrial	1.2 A	Receptacle	2.54 µm	100 µin	Phosphor Bronze	Tin	15.4 mm 16.9 mm 18.5 mm	26	Female Socket	Liquid Crystal Polymer (LCP)	UL94 V-0	Board Guide Pick and Place Solder Retention	0.537 in	13.64 mm	Rectangular	Surface Mount	2	Black	All	Latch Holder	Solder	0.05 in	1.27 mm	-55 °C	125 °C	100 VAC	1 µin	0.025 µm	0.05 in	1.27 mm
Harwin Inc. M55-6022042R	Gold	Automotive General Purpose Industrial	1.2 A	Receptacle	2.54 µm	100 µin	Phosphor Bronze	Tin	15.4 mm 16.9 mm 18.5 mm	20	Female Socket	Liquid Crystal Polymer (LCP)	UL94 V-0	Board Guide Pick and Place Solder Retention	0.537 in	13.64 mm	Rectangular	Surface Mount	2	Black	All	Latch Holder	Solder	0.05 in	1.27 mm	-55 °C	125 °C	100 VAC	1 µin	0.025 µm	0.05 in	1.27 mm
Harwin Inc. M55-6021242R	Gold	Automotive General Purpose Industrial	1.2 A	Receptacle	2.54 µm	100 µin	Phosphor Bronze	Tin	15.4 mm 16.9 mm 18.5 mm	12	Female Socket	Liquid Crystal Polymer (LCP)	UL94 V-0	Board Guide Pick and Place Solder Retention	0.537 in	13.64 mm	Rectangular	Surface Mount	2	Black	All	Latch Holder	Solder	0.05 in	1.27 mm	-55 °C	125 °C	100 VAC	1 µin	0.025 µm	0.05 in	1.27 mm
Harwin Inc. M55-6028042R	Gold	Automotive General Purpose Industrial	1.2 A	Receptacle	2.54 µm	100 µin	Phosphor Bronze	Tin	15.4 mm 16.9 mm 18.5 mm	80	Female Socket	Liquid Crystal Polymer (LCP)	UL94 V-0	Board Guide Pick and Place Solder Retention	0.537 in	13.64 mm	Rectangular	Surface Mount	2	Black	All	Latch Holder	Solder	0.05 in	1.27 mm	-55 °C	125 °C	100 VAC	1 µin	0.025 µm	0.05 in	1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.50
		10	$ 2.17
		100	$ 1.94
	Digi-Reel®	1	$ 2.50
		10	$ 2.17
		100	$ 1.94
	Tape & Reel (TR)	200	$ 1.94
		400	$ 1.76
		600	$ 1.62
		1000	$ 1.39
		2000	$ 1.34
		5000	$ 1.23
Newark	Each (Supplied on Cut Tape)	1	$ 2.66
		10	$ 2.37
		50	$ 2.15
		100	$ 1.97
		250	$ 1.83
		500	$ 1.71
		1000	$ 1.60
		2500	$ 1.51

Description

General part information

M55-602 Series

12 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
