1415179

Active

Phoenix Contact

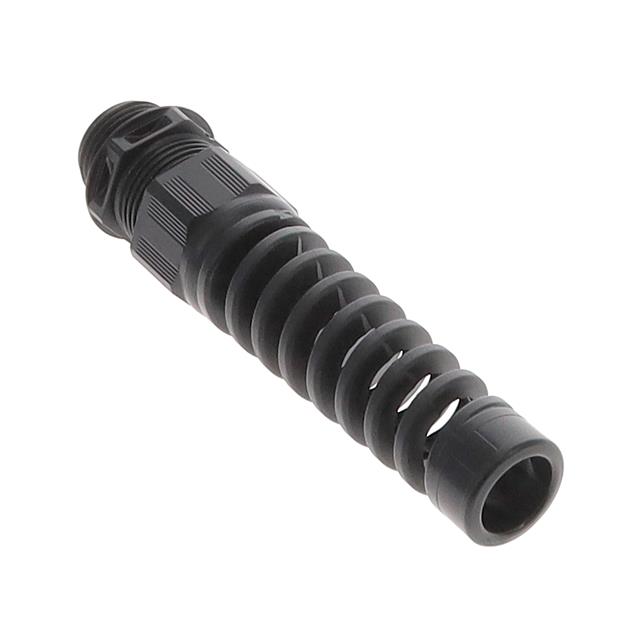

CABLE GLAND 6-13MM M20 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 6-13MM M20 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	1415179

Color	Black
Includes	Strain Relief, O-Ring, Seal
Ingress Protection	IP68/IP69 - Dust Tight, Water Resistant, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.512 in
Outside Cable Diameter (Max) [Max] [diameter]	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Thread Length	0.472 in
Thread Length	12 mm
Thread Size	M20
Type	Cable Gland

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Includes	Color	Type	Thread Length	Thread Length	Material	Thread Size
Phoenix Contact 1415182	0.512 in	13 mm	100 °C	-40 °C	6 mm	0.236 in	IP68/IP69 - Dust Tight Water Resistant Waterproof	O-Ring Seal Strain Relief	Silver	Cable Gland	0.236 in	6 mm	Brass Nickel Plated	M20
Phoenix Contact 1415179	0.512 in	13 mm	100 °C	-40 °C	6 mm	0.236 in	IP68/IP69 - Dust Tight Water Resistant Waterproof	O-Ring Seal Strain Relief	Black	Cable Gland	0.472 in	12 mm	Polyamide (PA) Nylon	M20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.41

General part information

Cable Gland Polyamide (PA), Nylon M20 Black
