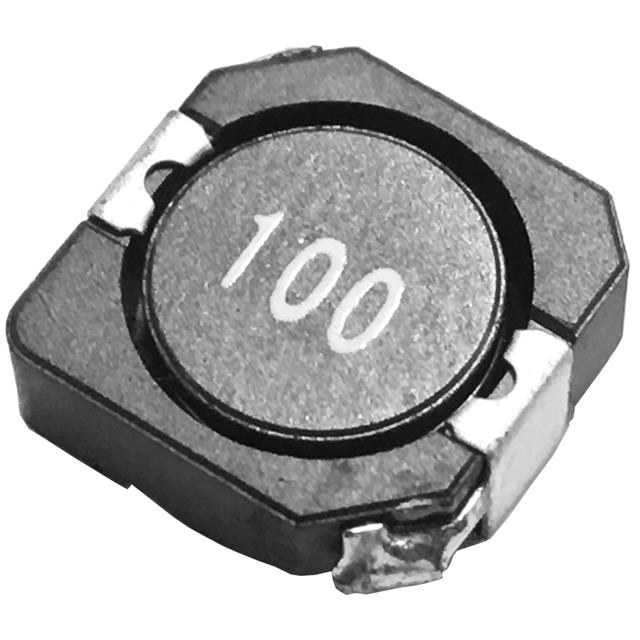

BPRR00101051221K00
ActivePulse Electronics
POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) FERRITE SMD SHIELDED TYPE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPRR00101051221K00
ActivePulse Electronics
POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) FERRITE SMD SHIELDED TYPE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BPRR00101051221K00 |
|---|---|
| Current - Saturation (Isat) | 940 mA |
| Current Rating (Amps) | 940 mA |
| DC Resistance (DCR) [Max] | 500 mOhm |
| Height - Seated (Max) [Max] [z] | 5.1 mm |
| Height - Seated (Max) [Max] [z] | 0.201 in |
| Inductance | 220 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.398 " |
| Size / Dimension [x] | 10.1 mm |
| Size / Dimension [y] | 10 mm |
| Size / Dimension [y] | 0.394 in |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4200 | $ 0.41 | |
Description
General part information
BPRR Series
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
