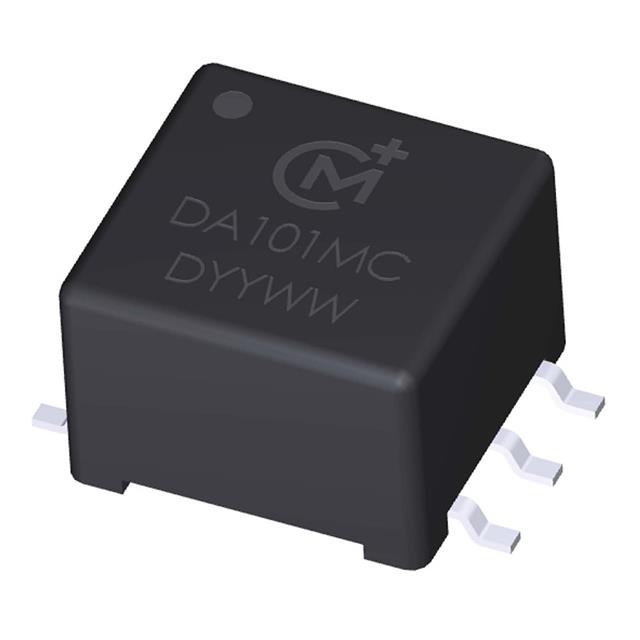

DA103MC-R

NRND

Murata Power Solutions Inc.

AUDIO TRANSFORMER 1:1 2000VRMS 6 TERMINAL GULL WING SMD

Search across all available documentation for this part.

NRND

Murata Power Solutions Inc.

AUDIO TRANSFORMER 1:1 2000VRMS 6 TERMINAL GULL WING SMD

Technical Specifications

Parameters and characteristics for this part

Specification	DA103MC-R

ET (Volt-Time)	28 VµS
Height - Seated (Max)	6.35 mm
Height - Seated (Max) [Max]	0.25 in
Inductance	7.75 mH
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Turns Ratio - Primary:Secondary	1:1

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Mounting Type	Turns Ratio - Primary:Secondary	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	ET (Volt-Time)
Murata Power Solutions Inc. DA103MC-R	6.35 mm	0.25 in	Surface Mount	1:1	7.75 mH	70 °C	0 °C	28 VµS
Murata Power Solutions Inc. DA103JC	6.35 mm	0.25 in	Surface Mount	1:1	7.75 mH	85 °C	-40 °C	28 VµS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	500	$ 0.57
		1000	$ 0.56
Digikey	Bulk	500	$ 1.12
Newark	Each	500	$ 1.26
		1000	$ 1.21

General part information

AUDIO TRANSFORMER 1:1 2000VRMS 6 TERMINAL GULL WING SMD

Technical documentation and resources
