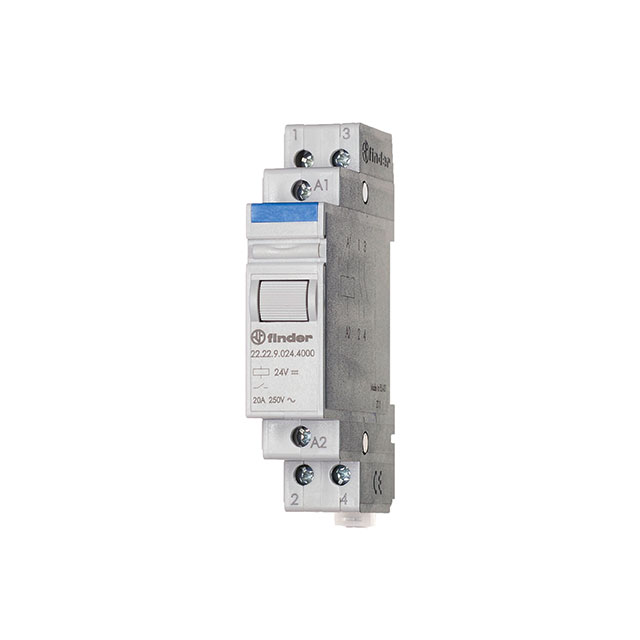

22.22.9.024.4000
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE DPST 20A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
22.22.9.024.4000
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE DPST 20A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 22.22.9.024.4000 |
|---|---|
| Approval Agency | CE, EAC |
| Coil Current | 52.2 mA |
| Coil Resistance | 460 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 20 A |
| Features | Test Button |
| Load - Max Switching [Max] | 8000 VA |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 21.6 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.53 | |
| 10 | $ 31.91 | |||
| 25 | $ 30.23 | |||
| 50 | $ 29.03 | |||
| 100 | $ 27.87 | |||
| 250 | $ 26.41 | |||
Description
General part information
22.22.9 Series
General Purpose Relay DPST-NO (2 Form A) 24VDC Coil DIN Rail
