T0054471299N

Active

Apex Tool Group

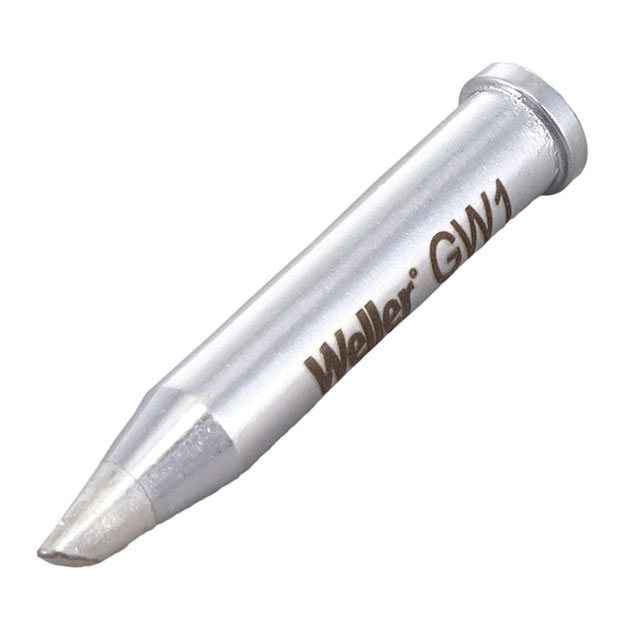

XT GW1 SOLDERING TIP 2.3/3.2MM

Search across all available documentation for this part.

Active

Apex Tool Group

XT GW1 SOLDERING TIP 2.3/3.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	T0054471299N

For Use With/Related Products	Weller® WP120, WXP120
Height [z]	0.091 in
Height [z]	2.3 mm
Length	1.437 in
Length	36.5 mm
Tip Shape	Gull Wing 45°
Tip Type	Soldering
Width [y]	3.18 mm
Width [y]	0.125 in

Part	Tip Type	Tip Shape	Diameter [diameter]	Diameter [diameter]	For Use With/Related Products	Length	Length	Height [z]	Height [z]	Length [x]	Width [y]	Width [y]
Apex Tool Group T0054471699N	Soldering	Round	3.2 mm	0.126 in	Weller® WP120 WXP120	1.437 in	36.5 mm
Apex Tool Group T0054471999N
Apex Tool Group T0054471199N	Soldering	Knife 60°			Weller® WP120 WXP120		45 mm	2 mm	0.079 in	1.772 "
Apex Tool Group T0054471299N	Soldering	Gull Wing 45°			Weller® WP120 WXP120	1.437 in	36.5 mm	2.3 mm	0.091 in		3.18 mm	0.125 in
Apex Tool Group T0054471599N	Soldering	Round	2.4 mm	0.094 "	Weller® WP120 WXP120	1.437 in	36.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.90

General part information

XT GW1 SOLDERING TIP 2.3/3.2MM
