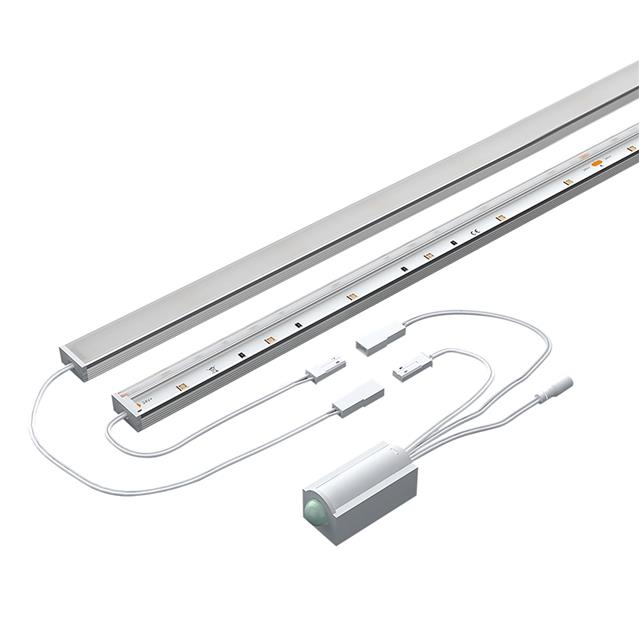

EUV-CBL1160

Active

Euri Lighting

LED ENG COOL WHT RECT 6000K

Search across all available documentation for this part.

Active

Euri Lighting

LED ENG COOL WHT RECT 6000K

Technical Specifications

Parameters and characteristics for this part

Specification	EUV-CBL1160

CCT (K)	6000 K
Color	Cool, White
Configuration	Rectangle
CRI (Color Rendering Index)	80
Current - Max [Max]	300 mA
Lens Type	Flat
Lumens/Watt @ Current - Test	112 lm/W
Luminous Flux @ Current/Temperature	810 lm
Size / Dimension [x]	20 "
Size / Dimension [y]	16 mm
Type	LED Engine
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	24 V

Part	Voltage - Forward (Vf) (Typ)	Color	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Type	Lumens/Watt @ Current - Test	CCT (K)	Current - Max [Max]	Lens Type	Configuration	Viewing Angle
Euri Lighting EUV-CBL1160	24 V	Cool White	810 lm	16 mm	20 "	80	LED Engine	112 lm/W	6000 K	300 mA	Flat	Rectangle	100 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.98

General part information

LED Lighting COBs Engines Modules LED Engine - White, Cool Rectangle
