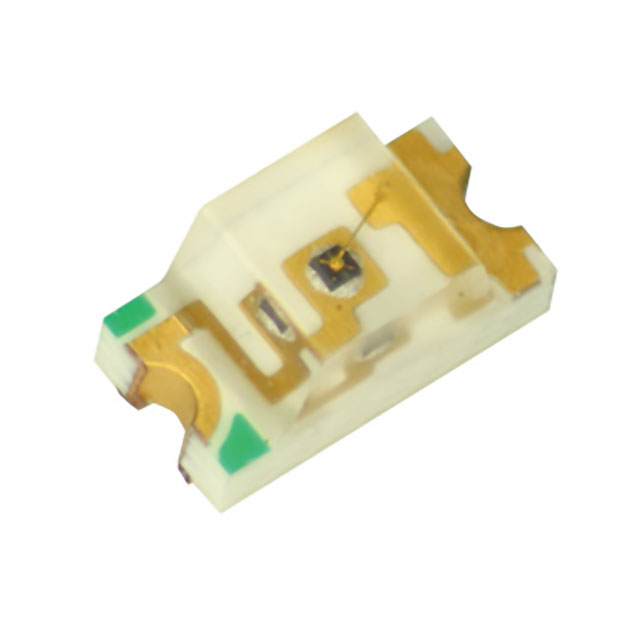

TDN1101W-TR
ActiveStanley Electric Co
EMITTER IR 870NM 50MA SMD
Deep-Dive with AI
Search across all available documentation for this part.
TDN1101W-TR
ActiveStanley Electric Co
EMITTER IR 870NM 50MA SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TDN1101W-TR |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, No Lead |
| Radiant Intensity (Ie) Min @ If | 0.6 mW/sr |
| Type | Infrared (IR) |
| Voltage - Forward (Vf) (Typ) | 1.4 V |
| Wavelength | 870 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.68 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.29 | |||
| 1000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.68 | ||
| 10 | $ 0.45 | |||
| 100 | $ 0.29 | |||
| 1000 | $ 0.23 | |||
| Tape & Reel (TR) | 2500 | $ 0.17 | ||
Description
General part information
TDN1101 Series
Infrared (IR) Emitter 870nm 1.4V 50mA 0.6mW/sr @ 20mA 2-SMD, No Lead
Documents
Technical documentation and resources
No documents available
