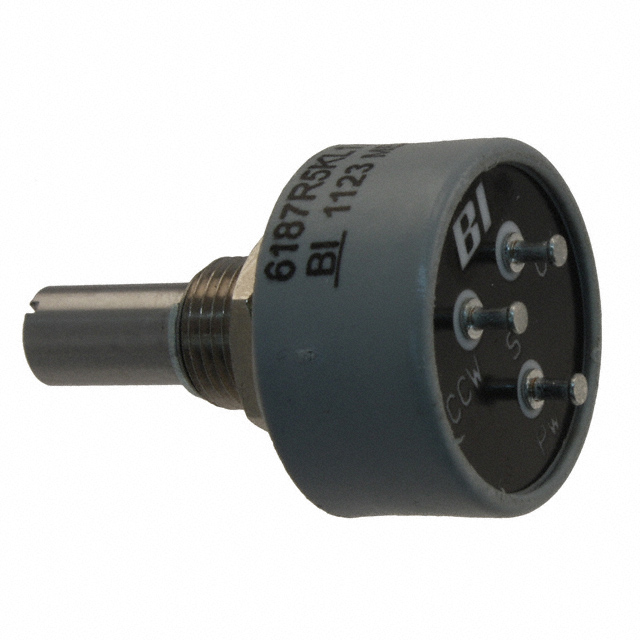

6187R5KL1.0LF

Active

TT Electronics/BI

POT 5K OHM 1W PLASTIC LINEAR

Search across all available documentation for this part.

Active

TT Electronics/BI

POT 5K OHM 1W PLASTIC LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Taper	Adjustment Type	Temperature Coefficient	Actuator Length [x]	Actuator Length [x]	Tolerance	Termination Style	Rotation	Resistance (Ohms)	Number of Gangs	Size - Body [diameter]	Size - Body [diameter]	Power (Watts)	Resistive Material	Actuator Type	Number of Turns	Bushing Thread	Actuator Diameter	Actuator Diameter [diameter]	Resistance (Ohms)
TT Electronics/BI 6187R10KL1.0LF	Linear	User Defined	-400 ppm/°C	0.874 in	22.2 mm	10 %	Solder Turret	Continuous	10k	1	0.874 in	22.2 mm	1 W	Conductive Plastic	Slotted	1	3/8-32
TT Electronics/BI 6187R20KL1.0LF	Linear	User Defined	-400 ppm/°C	0.874 in	22.2 mm	10 %	Solder Turret	Continuous		1	0.874 in	22.2 mm	1 W	Conductive Plastic	Slotted	1	3/8-32	6.35 mm	0.25 in	20 kOhms
TT Electronics/BI 6187R5KL1.0ST	Linear	User Defined	-400 ppm/°C	0.874 in	22.2 mm	10 %	Solder Turret	Continuous		1	0.874 in	22.2 mm	1 W	Conductive Plastic	Slotted	1	3/8-32			5 kOhms
TT Electronics/BI 6187R5KL1.0LF	Linear	User Defined	-400 ppm/°C	0.874 in	22.2 mm	10 %	Solder Turret	Continuous		1	0.874 in	22.2 mm	1 W	Conductive Plastic	Slotted	1	3/8-32			5 kOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 1W Solder Turret
