5530132300F
ActiveDIALIGHT

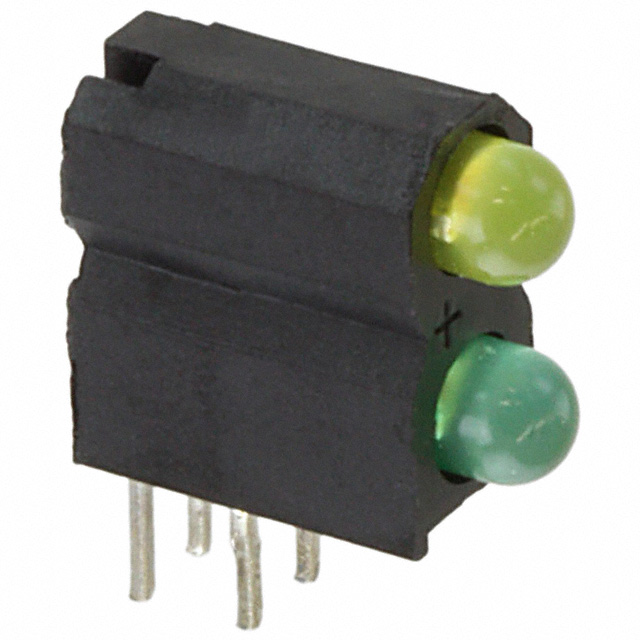

LED CBI 3MM BI-LVL GRN/YELLOW RA
Deep-Dive with AI
Search across all available documentation for this part.
5530132300F
ActiveDIALIGHT
LED CBI 3MM BI-LVL GRN/YELLOW RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5530132300F |
|---|---|
| Color | Yellow, Green |
| Configuration | 2 High |
| Current | 10 mA |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating [custom] | 16 mcd |
| Millicandela Rating [custom] | 6.3 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 45 ° |
| Voltage Rating | 2.1 V |
| Wavelength - Peak | 585 nm, 563 nm |
5530132 Series
| Part | Mounting Type | Lens Style | Lens Size | Lens Size | Wavelength - Peak | Lens Type | Voltage Rating | Configuration | Color | Millicandela Rating [custom] | Millicandela Rating [custom] | Viewing Angle | Current | Lens Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIALIGHT | Through Hole Right Angle | Round with Domed Top | 3 mm | T-1 | ||||||||||
DIALIGHT | Through Hole Right Angle | Round with Domed Top | 3 mm | T-1 | 563 nm 585 nm | Diffused Tinted | 2.1 V | 2 High | Green Yellow | 16 mcd | 6.3 mcd | 45 ° | 10 mA | |
DIALIGHT | Through Hole Right Angle | Round with Domed Top | 3 mm | T-1 | 565 nm 585 nm | Diffused Tinted | 2.1 V | 2 High | Green Yellow | 12.6 mcd | 10 mcd | 60 ° | 10 mA | |
DIALIGHT | Through Hole Right Angle | Round with Domed Top | 3 mm | |||||||||||
DIALIGHT | Through Hole Right Angle | Round with Domed Top | 565 nm 585 nm | Diffused Tinted | 2.1 V | 2 High | Green Yellow | 12.6 mcd | 10 mcd | 60 ° | 10 mA | 3 mm | ||
DIALIGHT | ||||||||||||||
DIALIGHT | Through Hole Right Angle | 563 nm 585 nm | Diffused Tinted | 2.1 V | 2 High | Green Yellow | 16 mcd | 6.3 mcd | 45 ° | 10 mA | ||||
DIALIGHT | Through Hole Right Angle | Round with Domed Top | 563 nm 585 nm | Diffused Tinted | 2.1 V | 2 High | Green Yellow | 16 mcd | 6.3 mcd | 45 ° | 10 mA | 3 mm | ||
DIALIGHT | Through Hole Right Angle | Round with Domed Top | 3 mm | T-1 | ||||||||||
DIALIGHT | Through Hole Right Angle | Round with Domed Top | 563 nm 585 nm | Diffused Tinted | 2.1 V | 2 High | Green Yellow | 16 mcd | 6.3 mcd | 10 mA | 3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.48 | |
| 10 | $ 1.62 | |||
| 100 | $ 1.18 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.96 | |||
| 2000 | $ 0.91 | |||
| 5000 | $ 0.87 | |||
| 10000 | $ 0.84 | |||
Description
General part information
5530132 Series
LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Yellow (x 1) Diffused, Tinted 2.1V 10mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
