PPTC291KFXC

Obsolete

Sullins Connector Solutions

CONN HDR 29POS 0.1 TIN SMD

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 29POS 0.1 TIN SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC291KFXC

Connector Type	Header, Top or Bottom Entry
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.28 in
Insulation Height	7.1 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	29
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Positions	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Shape	Insulation Material	Number of Rows	Fastening Type	Insulation Height	Insulation Height	Termination	Contact Type	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Material	Number of Positions Loaded	Contact Finish - Post	Voltage Rating	Connector Type	Current Rating (Amps)
Sullins Connector Solutions PPTC291LGBN-RC	29	UL94 V-0	-40 °C	105 ░C	Through Hole Right Angle	Square	Polyester	1	Push-Pull	0.1 in	2.54 mm	Solder	Female Socket	3.15 mm	0.124 "	0.1 in	2.54 mm	Black	Phosphor Bronze	All	Tin	250 VDC	Header	3 A
Sullins Connector Solutions PPTC291LGBN	29	UL94 V-0	-40 °C	105 ░C	Through Hole Right Angle	Square	Polyester	1	Push-Pull	0.1 in	2.54 mm	Solder	Female Socket	3.15 mm	0.124 "	0.1 in	2.54 mm	Black	Phosphor Bronze	All	Tin	250 VDC	Header	3 A
Sullins Connector Solutions PPTC291KFXC	29	UL94 V-0	-40 °C	105 ░C	Surface Mount	Square	Polyester	1	Push-Pull	0.28 in	7.1 mm	Solder	Female Socket			0.1 in	2.54 mm	Black	Phosphor Bronze	All	Tin	250 VDC	Header Top or Bottom Entry	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

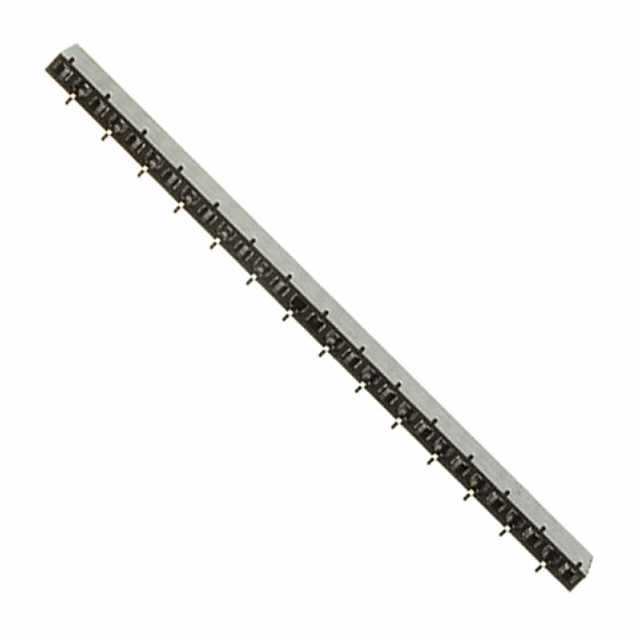

29 Position Header, Top or Bottom Entry Connector 0.100" (2.54mm) Surface Mount Tin
