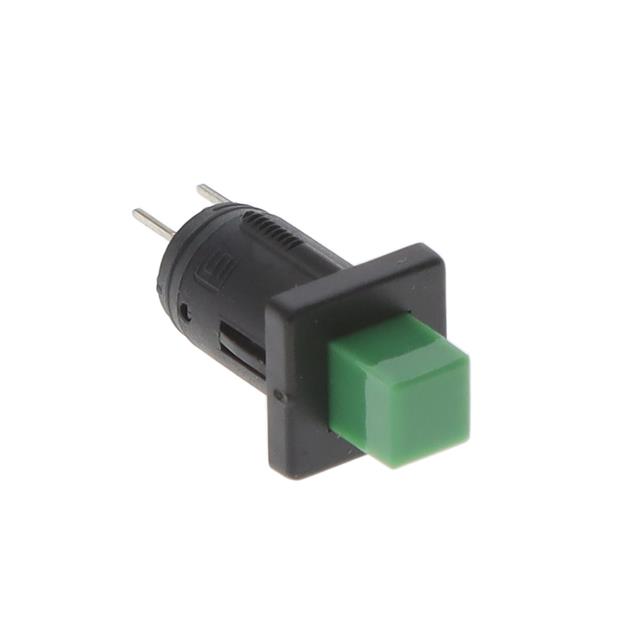

0041.9151.5307

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 200MA 60V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 200MA 60V

Technical Specifications

Parameters and characteristics for this part

Specification	0041.9151.5307

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	200 mA
Electrical Life	10000 Cycles
Ingress Protection	IP40
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	Off-On
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	60 V
Voltage Rating - DC	50 VDC

Part	Color - Actuator/Cap	Switch Function	Actuator Marking	Actuator Type	Electrical Life	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Circuit	Type	Panel Cutout Dimensions [diameter]	Mounting Type	Ingress Protection	Voltage Rating - AC	Termination Style	Mechanical Life
SCHURTER Inc. 0041.9151.5307	Green	Off-On	No Marking	Button Square	10000 Cycles	50 VDC	-25 °C	85 °C	200 mA	SPST-NO	Standard	8 mm	Panel Mount Front	IP40	60 V	PC Pin	10000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
