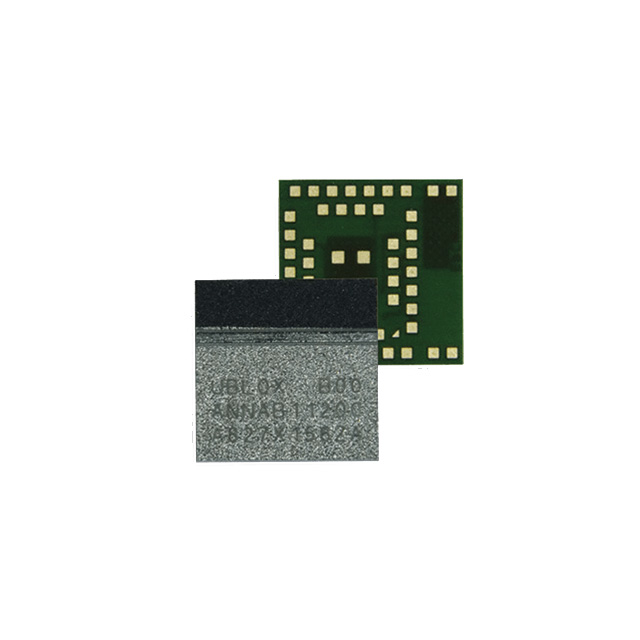

ANNA-B112-01B
Activeu-blox
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
ANNA-B112-01B
Activeu-blox
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ANNA-B112-01B |
|---|---|
| Antenna Type | Integrated, Chip |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 52-SMD Module |
| Power - Output | 4 dBm |
| Protocol | Bluetooth v5.0 |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | SPI, GPIO, I2C, ADC, PDM, UART, I2S |
| Utilized IC / Part | nRF52832 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.96 | |
| 10 | $ 8.97 | |||
| 50 | $ 8.07 | |||
| 100 | $ 7.73 | |||
| Digi-Reel® | 1 | $ 9.96 | ||
| 10 | $ 8.97 | |||
| 50 | $ 8.07 | |||
| 100 | $ 7.73 | |||
| Tape & Reel (TR) | 500 | $ 7.26 | ||
Description
General part information
ANNA-B112 Series
Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
