DC11.0001.003
ActiveUN-FILTERED IEC POWER ENTRY MODULE, C14 OR C18 INLET, SCREW-ON, 1-POLE, IEC C14, GENERAL PURPOSE
Deep-Dive with AI
Search across all available documentation for this part.
DC11.0001.003
ActiveUN-FILTERED IEC POWER ENTRY MODULE, C14 OR C18 INLET, SCREW-ON, 1-POLE, IEC C14, GENERAL PURPOSE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DC11.0001.003 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CCC, ENEC, cULus |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 27.6 mm |
| Panel Cutout Dimensions [y] | 31.6 mm |
| Switch Features | Switch On-Off |
| Termination | 0.189 ", 4.8 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DC11.0001 Series

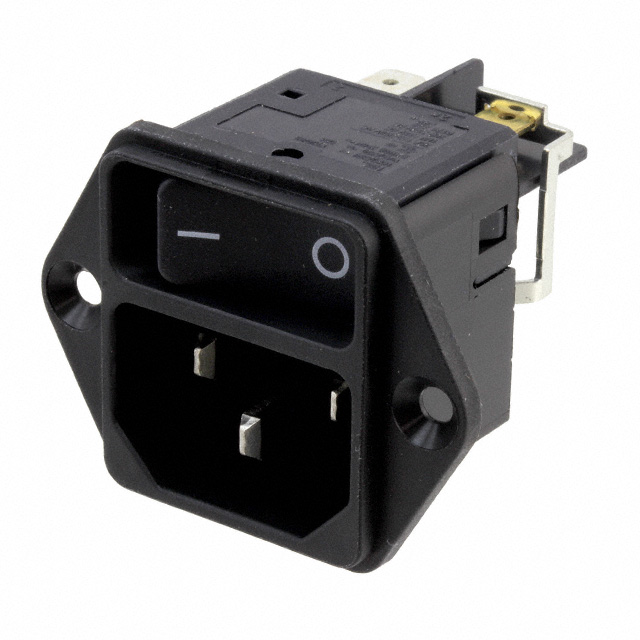

The DC11.0001.003 is a GST IEC C14 Power Entry Module without filter. It has a 1-pole line switch and 4.8x0.8mm quick connect terminals. It is Ideal for application with high transient loads. It is suitable for use in equipment according to IEC/UL 60950. The housing is made of black UL94V-0 thermoplastic. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
