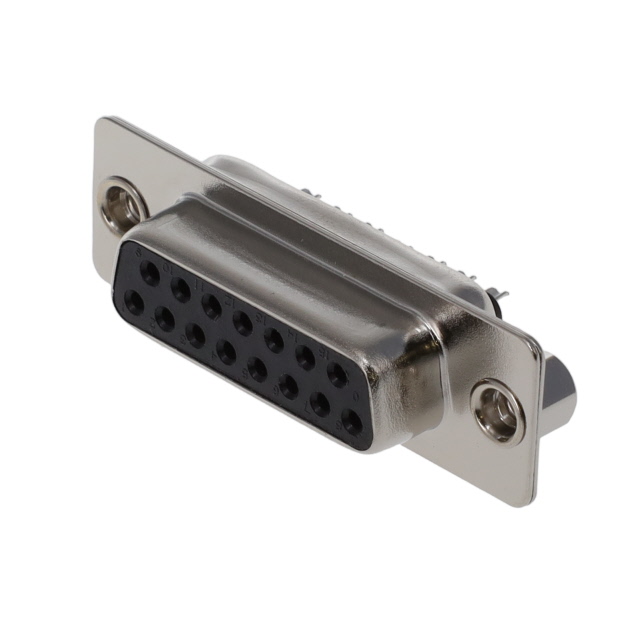

K85X-AA-15S-K

Active

Kycon, Inc.

CONN DSUB RCPT 15P VERT SLDR CUP

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN DSUB RCPT 15P VERT SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	K85X-AA-15S-K

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Voltage Rating	30 VDC

Part	Flange Feature	Voltage Rating	Mounting Type	Contact Form	Connector Type	Number of Rows	Shell Size, Connector Layout	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Features	Shell Material, Finish	Contact Material	Contact Finish	Connector Style	Color	Contact Type	Current Rating (Amps)	Contact Finish Thickness
Kycon, Inc. K85X-AA-15P-K30	4-40 Board Side	30 VDC	Through Hole	Stamped	Male Pins Plug	2	2	Polybutylene Terephthalate (PBT) Glass Filled	0.76 Ám	30 Áin	UL94 V-0	105 ░C	-55 °C	15	Grounding Indents	Nickel Plated Steel	Brass	Gold	D-Sub	Black	Signal	2 A
Kycon, Inc. K85X-AA-15S-K	4-40 Board Side	30 VDC	Through Hole	Stamped	Receptacle Female Sockets	2	2	Polybutylene Terephthalate (PBT) Glass Filled			UL94 V-0	105 ░C	-55 °C	15		Nickel Plated Steel	Brass	Gold	D-Sub	Black	Signal	2 A	Flash
Kycon, Inc. K85X-AA-15P-30	Housing/Shell (Unthreaded)	30 VDC	Through Hole	Stamped	Male Pins Plug	2	2	Polybutylene Terephthalate (PBT) Glass Filled	0.76 Ám	30 Áin	UL94 V-0	105 ░C	-55 °C	15	Grounding Indents	Nickel Plated Steel	Brass	Gold	D-Sub	Black	Signal	2 A
Kycon, Inc. K85X-AA-15S-30	Housing/Shell (Unthreaded)	30 VDC	Through Hole	Stamped	Receptacle Female Sockets	2	2	Polybutylene Terephthalate (PBT) Glass Filled	0.76 Ám	30 Áin	UL94 V-0	105 ░C	-55 °C	15		Nickel Plated Steel	Brass	Gold	D-Sub	Black	Signal	2 A
