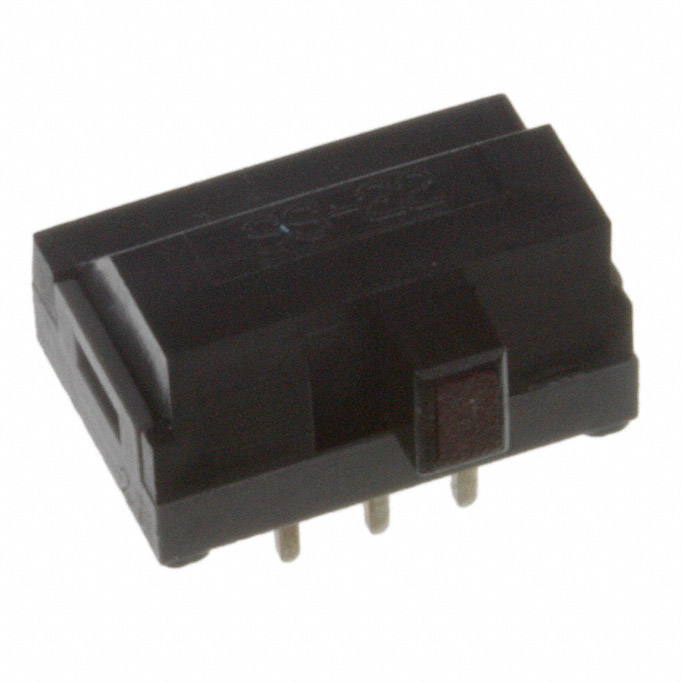

SS22SDH2LC

Active

NKK Switches

ULTRA-MINIATURE ILLUMINATED SLIDE

Search across all available documentation for this part.

Active

NKK Switches

ULTRA-MINIATURE ILLUMINATED SLIDE

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Circuit	Switch Travel	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Switch Function	Contact Timing	Termination Style	Actuator Length [x]	Actuator Type	Actuator Material	Mechanical Life	Contact Material	Mounting Type	Electrical Life
NKK Switches SS22SDH2LE	Silver	DPDT	2 mm	30 V	-15 °C	60 °C	100 mA	On-On	Shorting	PC Pin	2.5 mm	Illuminated	Polyacetal	10000 Steps	Phosphor Bronze	Through Hole Right Angle	10000 Cycles
NKK Switches SS22SDH2LC	Silver	DPDT	2 mm	30 V	-15 °C	60 °C	100 mA	On-On	Shorting	PC Pin	2.5 mm	Illuminated	Polyacetal	10000 Steps	Phosphor Bronze	Through Hole Right Angle	10000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch DPDT Through Hole, Right Angle
