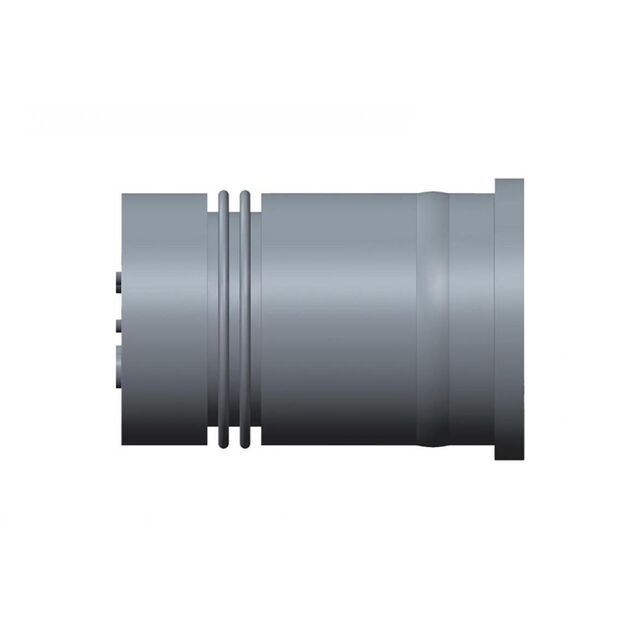

SLD-I005001

Active

Amphenol LTW

M SERIES, ACCESSORY, 4A, 05 PINS

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, ACCESSORY, 4A, 05 PINS

Technical Specifications

Parameters and characteristics for this part

Specification	SLD-I005001

Color	Black
Connector Type	Female Sockets, Male Pins, Insert
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	I
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Voltage Rating	60 VDC

Part	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Current Rating (Amps)	Insert Material	Color	Voltage Rating	Contact Finish - Mating	Primary Material	Contact Material	Shell Material	Orientation	Mounting Type	Fastening Type
Amphenol LTW SLD-I005001	Unshielded	-40 °C	105 ░C	Female Sockets Insert Male Pins	4 A	Polyamide (PA) Nylon Glass Filled	Black	60 VDC	Gold	Plastic	Copper Alloy	Glass Filled Nylon Polyamide (PA)	I	Free Hanging (In-Line)	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 2.91

General part information

5 Position Circular Connector Insert, Female Sockets and Male Pins Solder Cup

Technical documentation and resources

No documents available
