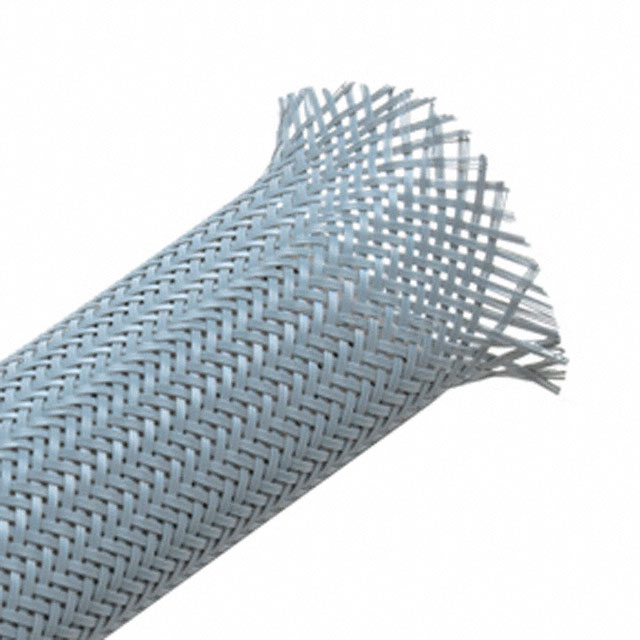

170-25000

Active

HELLERMANNTYTON

SLEEVING 1.969" X 164' GRAY

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SLEEVING 1.969" X 164' GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	170-25000

Abrasion Protection	Abrasion and Cut Resistant
Color	Gray
Diameter - Inside, Expanded [diameter]	2.165 in
Diameter - Inside, Expanded [diameter]	55 mm
Diameter - Outside, Non-Expanded [diameter]	50 mm
Diameter - Outside, Non-Expanded [diameter]	1.969 in
Features	Solvent Resistant, Salt Resistant
Heat Protection	Heat Stabilized
Length [x]	50 m
Length [x]	164 ft
Liquid Protection	Fluid Resistant, Gasoline Resistant, Moisture Resistant
Material	Polyamide (PA66), Nylon 6/6, Halogen Free
Material Flammability Rating	UL94 V-2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-60 °C
Type	Sleeve
Type Attributes	Expandable

Part	Color	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type	Length [x]	Length [x]	Heat Protection	Type Attributes	Features	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Material	Operating Temperature [Max]	Operating Temperature [Min]	Liquid Protection	Abrasion Protection	Material Flammability Rating
HELLERMANNTYTON 170-25000	Gray	50 mm	1.969 in	Sleeve	50 m	164 ft	Heat Stabilized	Expandable	Salt Resistant Solvent Resistant	2.165 in	55 mm	Polyamide (PA66) Nylon 6/6 Halogen Free	150 °C	-60 °C	Fluid Resistant Gasoline Resistant Moisture Resistant	Abrasion and Cut Resistant	UL94 V-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 537.50
