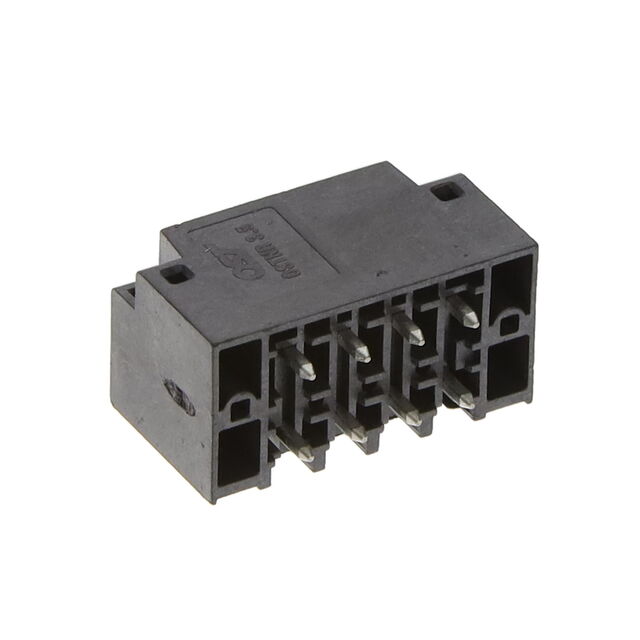

OSTNR081200

Active

On Shore Technology Inc.

3.5MM 2 PC TERM BLOCK HEADER VER

Search across all available documentation for this part.

Active

On Shore Technology Inc.

3.5MM 2 PC TERM BLOCK HEADER VER

Technical Specifications

Parameters and characteristics for this part

Specification	OSTNR081200

Color	Black
Contact Material	Copper
Contact Mating Finish	Tin
Contact Tail Length	0.079 in
Contact Tail Length	2 mm
Current - UL	8 A
Features	Mating Flange
Header Orientation	Vertical
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	11.6 mm
Insulation Height	0.457 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	8
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	4
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Housing Material	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Positions Per Level	Contact Mating Finish	Contact Material	Voltage - UL	Type	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Number of Levels	Color	Number of Positions	Current - UL	Features	Termination Style	Contact Tail Length	Contact Tail Length	Mounting Type
On Shore Technology Inc. OSTNR081201	Liquid Crystal Polymer (LCP)	90° Right Angle	-40 °C	115 °C	UL94 V-0	4	Tin	Copper	150 V	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.425 in	10.8 mm	2	Black	8	8 A	Mating Flange	Solder	0.079 in	2 mm	Through Hole
On Shore Technology Inc. OSTNR081100	Liquid Crystal Polymer (LCP)	Vertical	-40 °C	115 °C	UL94 V-0	4	Tin	Copper	300 V	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.457 in	11.6 mm	2	Black	8	8 A		Solder	0.079 in	2 mm	Through Hole
On Shore Technology Inc. OSTNR081200	Liquid Crystal Polymer (LCP)	Vertical	-40 °C	115 °C	UL94 V-0	4	Tin	Copper	300 V	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.457 in	11.6 mm	2	Black	8	8 A	Mating Flange	Solder	0.079 in	2 mm	Through Hole
On Shore Technology Inc. OSTNR081101	Liquid Crystal Polymer (LCP)	90° Right Angle	-40 °C	115 °C	UL94 V-0	4	Tin	Copper	150 V	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.425 in	10.8 mm	2	Black	8	8 A		Solder	0.079 in	2 mm	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
