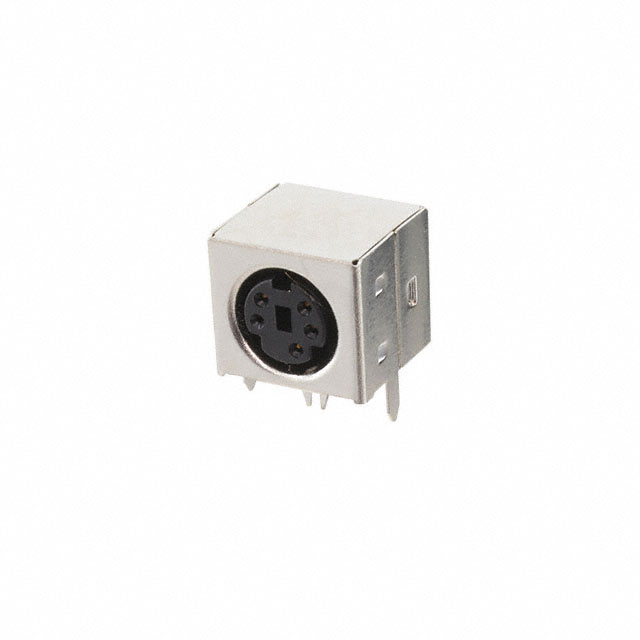

MDJ-005-FS

Active

Adam Tech

PHOSPHOR BRONZE 2A FEMALE GOLD 5P -25℃~+70℃ PLUGIN CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Search across all available documentation for this part.

Active

Adam Tech

PHOSPHOR BRONZE 2A FEMALE GOLD 5P -25℃~+70℃ PLUGIN CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	MDJ-005-FS

Applications	Video, Audio
Color	Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Features	Board Guide, Board Lock
Insert Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Tin
Shell Material	Copper Alloy
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC, 12 V

Part	Material Flammability Rating	Shell Size - Insert	Contact Finish - Mating	Contact Material	Termination	Color	Applications	Primary Material	Shell Material	Connector Type	Voltage Rating	Mounting Type	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Shell Finish	Shielding	Fastening Type	Features
Adam Tech MDJ-005-FS	UL94 V-0	Mini DIN	Gold	Phosphor Bronze	Solder	Silver	Audio Video	Metal	Copper Alloy	Female Sockets Jack	12 V 100 VAC	Through Hole Right Angle	Keyed	70 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Tin	Shielded	Push-Pull	Board Guide Board Lock
