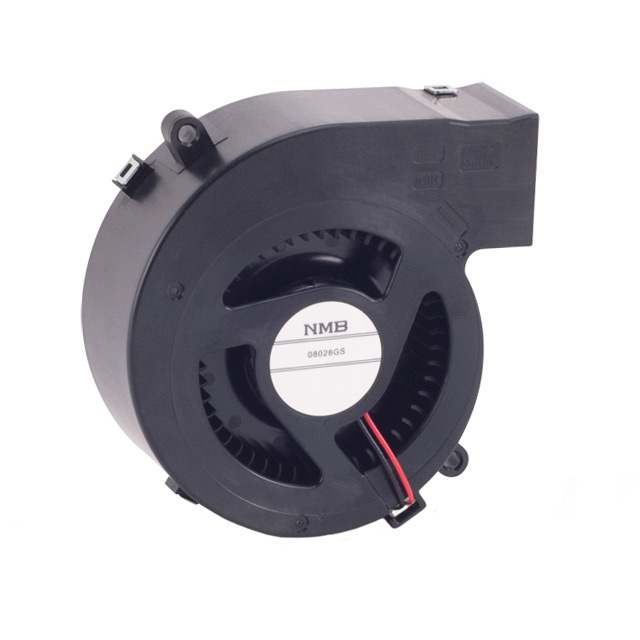

08028GS-12N-AA-00
ActiveNMB TECHNOLOGIES
FAN BLOWER, 80MM, 4.32W, 12 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
08028GS-12N-AA-00
ActiveNMB TECHNOLOGIES
FAN BLOWER, 80MM, 4.32W, 12 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 08028GS-12N-AA-00 |
|---|---|
| Air Flow | 17 CFM |
| Air Flow | 0.476 m³/min |
| Bearing Type | Sleeve |
| Current Rating (Amps) | 360 mA |
| Fan Type | Blower |
| Features | Auto Restart |
| Lifetime @ Temp. | 20000 Hrs, 60 °C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 40 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 4.32 W |
| RPM | 3650 RPM |
| Size / Dimension | Rectangular/Rounded |
| Size / Dimension [x] | 78.9 mm |
| Size / Dimension [z] | 79.7 mm |
| Static Pressure | 1.075 in H2O |
| Static Pressure | 267.8 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.5 VDC |
| Voltage Range [Min] | 6 VDC |
| Width [y] | 28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
08028GS Series
Fan Blower 12VDC Rectangular/Rounded - 78.9mm L x 79.7mm H Sleeve 17.0 CFM (0.476mł/min) 2 Wire Leads
