1013902

Active

Phoenix Contact

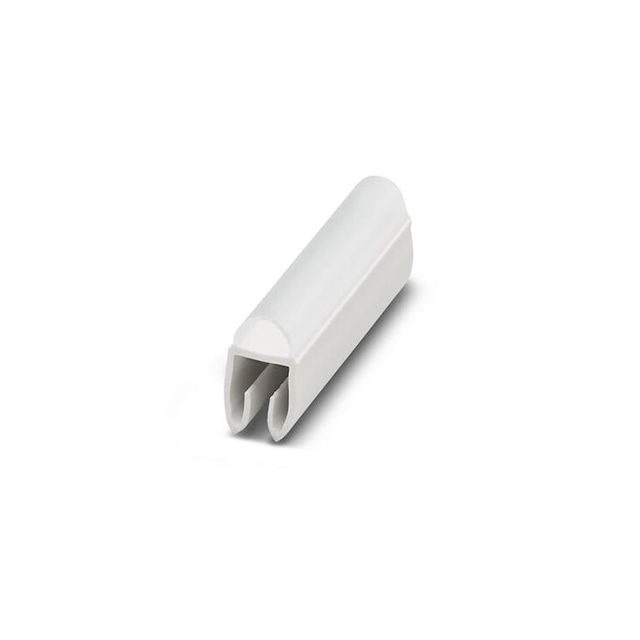

CONDUCTOR MARKER CARRIER, PATO 2/23 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1013902

Active

Phoenix Contact

CONDUCTOR MARKER CARRIER, PATO 2/23 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1013902

Cable Diameter [Max] [diameter]	4.4 mm
Cable Diameter [Max] [diameter]	0.173 in
Cable Diameter [Min] [diameter]	0.11 in
Cable Diameter [Min] [diameter]	2.8 mm
Color	Transparent
Legend	Blank
Material	Poly-Vinyl Chloride (PVC)
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-50 °C
Size [x]	23 mm
Size [x]	0.91 in
Size [y]	4 mm
Size [y]	0.16 in
Type	Wire Marker Carrier, Clip-On

PATO Series

Part	Legend	Color	Type	Size [x]	Size [y]	Size [x]	Size [y]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [diameter]	Cable Diameter [diameter]
Phoenix Contact 0822505	Blank	Transparent	Wire Marker Carrier Clip-On	0.16 "	1.18 in	4 mm	30 mm	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	4.4 mm	0.11 in	2.8 mm	0.173 in
Phoenix Contact 1013889	Blank	Transparent	Wire Marker Carrier Clip-On	0.16 "	0.39 "	10 mm	4 mm	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	4.4 mm	0.11 in	2.8 mm	0.173 in
Phoenix Contact 1013876	Blank	Transparent	Wire Marker Carrier Clip-On	0.16 "	0.39 "	10 mm	4 mm	Poly-Vinyl Chloride (PVC)	-50 °C	80 C		0.079 in	2 mm	0.138 in	3.5 mm
Phoenix Contact 0823753	Blank	Transparent	Wire Marker Clip-On					Poly-Vinyl Chloride (PVC)	-50 °C	80 C	4.4 mm	0.11 in	2.8 mm	0.173 in
Phoenix Contact 0827082	Blank	Transparent	Wire Marker Carrier Clip-On	0.16 "	0.47 "	4 mm	12 mm	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	4.4 mm	0.11 in	2.8 mm	0.173 in
Phoenix Contact 1013135	Blank	Transparent	Wire Marker Carrier Clip-On	0.16 "	0.59 in	4 mm	15 mm	Poly-Vinyl Chloride (PVC)	-50 °C	80 C						4.4 mm 8 mm	0.173 in 0.315 in
Phoenix Contact 1013148	Blank	Transparent	Wire Marker Carrier Clip-On	0.16 "	0.59 in	4 mm	15 mm	Poly-Vinyl Chloride (PVC)	-50 °C	80 C						6.7 mm 10 mm	0.264 in 0.394 in
Phoenix Contact 1013902	Blank	Transparent	Wire Marker Carrier Clip-On	0.91 in	0.16 in	23 mm	4 mm	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	4.4 mm	0.11 in	2.8 mm	0.173 in
Phoenix Contact 1013892	Blank	Transparent	Wire Marker Carrier Clip-On	0.91 in	0.16 in	23 mm	4 mm	Poly-Vinyl Chloride (PVC)	-50 °C	80 C		0.079 in	2 mm	0.138 in	3.5 mm
Phoenix Contact 1013119	Blank	Transparent	Wire Marker Carrier Clip-On	0.16 "	0.59 in	4 mm	15 mm	Poly-Vinyl Chloride (PVC)	-50 °C	80 C		0.079 in	2 mm	0.138 in	3.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.72
Newark	Each	1	$ 0.41
		50	$ 0.39
		100	$ 0.36
		250	$ 0.33
		500	$ 0.30
		1000	$ 0.26

Description

General part information

PATO Series

Wire Marker Carrier, Clip-On 0.91" W x 0.16" L (23.0mm x 4.0mm) Transparent Poly-Vinyl Chloride (PVC)
