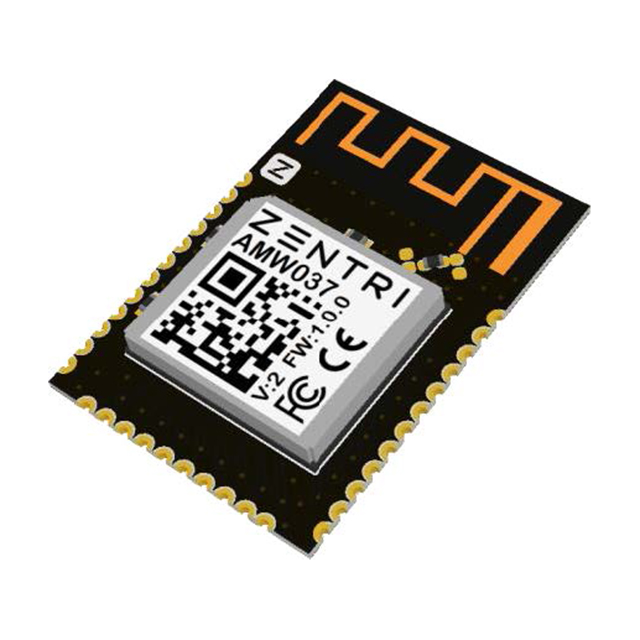

AMW037-1.0.2R
UnknownSilicon Labs
MODULE 802.11B/G/N 2.484GHZ 54000KBPS 44-PIN T/R
Deep-Dive with AI
Search across all available documentation for this part.
AMW037-1.0.2R
UnknownSilicon Labs
MODULE 802.11B/G/N 2.484GHZ 54000KBPS 44-PIN T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AMW037-1.0.2R |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 65 mA |
| Current - Transmitting | 200 mA |
| Data Rate | 54 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 2 MB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 20 dBm |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -93 dBm |
| Serial Interfaces | UART, SPI |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AMW037 Series
WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount
Documents
Technical documentation and resources
No documents available
