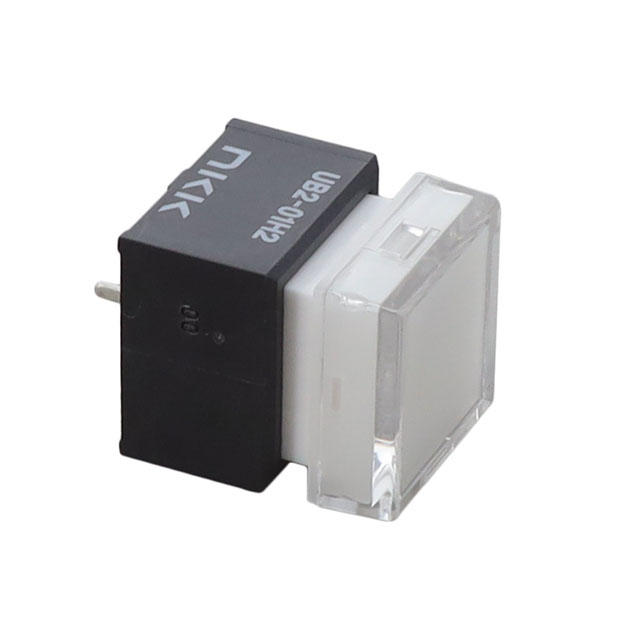

UB201KW036B-3JB

Active

NKK Switches

INDICATOR PB WHT ILL SQ FLAT CAP

Search across all available documentation for this part.

Active

NKK Switches

INDICATOR PB WHT ILL SQ FLAT CAP

Technical Specifications

Parameters and characteristics for this part

Part	Lens Color	Lens Style	Lens Transparency	Type	Current	Lamp Color	Voltage	Panel Cutout Shape	Lens Size [y]	Lens Size [x]
NKK Switches UB201KW036CF-1JB	White	Rectangle with Flat Top	Diffused	LED	20 mA 25 mA	Green Red	2.1 V 3.5 V	Rectangle
NKK Switches UB201KW036B-3JB	White	Rectangle with Flat Top	Diffused	LED		White	3.3 V		15 mm	15.24 mm
NKK Switches UB201KW036G		Rectangle with Flat Top		LED	30 mA	Blue	3.6 V		15 mm	15.24 mm
NKK Switches UB201KW036B		Rectangle with Flat Top		LED		White	3.3 V		15 mm	15.24 mm
NKK Switches UB201KW036B-2B	White	Rectangle with Flat Top	Diffused	LED		White	3.3 V	Rectangle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator White Diffused 3.3V 20mA
