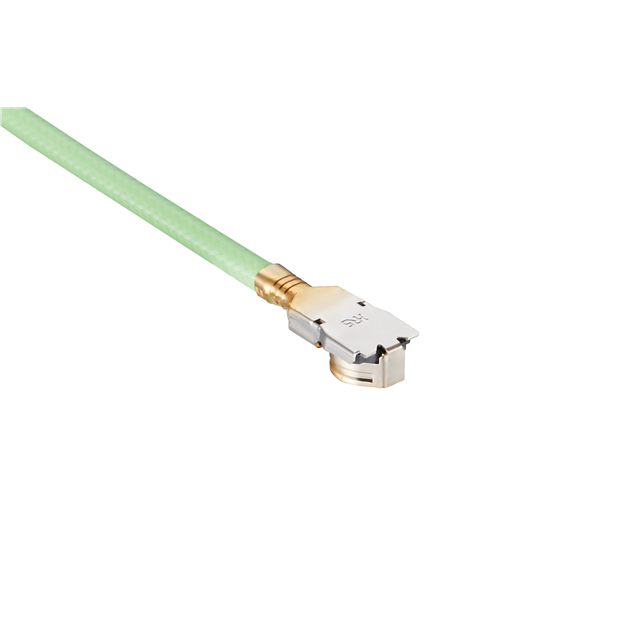

DFL75-2LPP-084N9D-A-300
ActiveHirose Electric USA, Inc.
CBL ASSY D.FL75 PLUG-PLG 11.811"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DFL75-2LPP-084N9D-A-300
ActiveHirose Electric USA, Inc.
CBL ASSY D.FL75 PLUG-PLG 11.811"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DFL75-2LPP-084N9D-A-300 |
|---|---|
| 1st Connector | D.FL75 Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | D.FL75 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 1.50mm OD Coaxial Cable |
| Color | Green |
| Frequency - Max [Max] | 12 GHz |
| Length [x] | 300 mm |
| Length [x] | 11.811 in |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 75 Ohms |
| Style | D.FL75 to D.FL75 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 17.63 | |
| 10 | $ 15.28 | |||
| 25 | $ 14.48 | |||
| 50 | $ 14.27 | |||
| 100 | $ 12.59 | |||
| 300 | $ 11.75 | |||
| 500 | $ 11.50 | |||
Description
General part information
DFL75 Series
Cable Assembly Coaxial D.FL75 to D.FL75 1.50mm OD Coaxial Cable 11.811" (300.00mm)
