LHD-10-TS

Active

Adam Tech

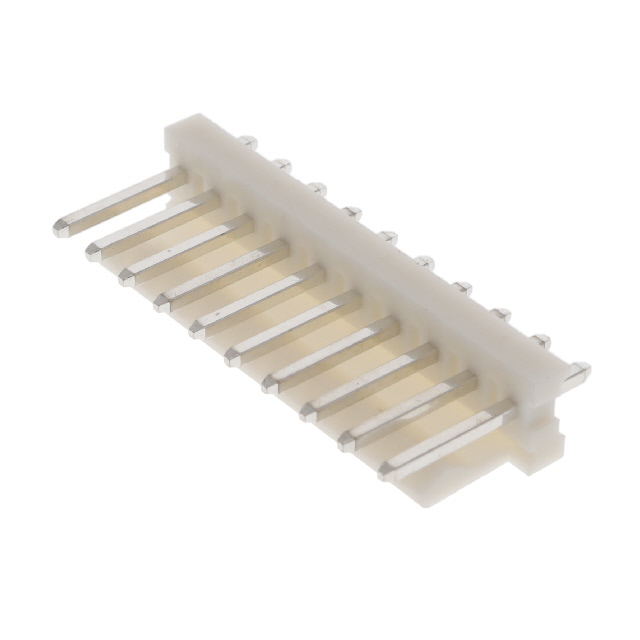

CONN HEADER VERT 10POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 10POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHD-10-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.448 in
Contact Length - Mating	11.38 mm
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	0.425 in
Insulation Height	10.8 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length [x]	0.715 "
Overall Contact Length [x]	18.16 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Material Flammability Rating	Contact Finish - Post	Shrouding	Insulation Material	Termination	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Connector Type	Fastening Type	Number of Rows	Contact Length - Post	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Style	Contact Type	Contact Shape	Insulation Color	Number of Positions	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Mounting Type	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Length - Post	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height
Adam Tech LHD-10-TRB	UL94 V-2	Tin	Shrouded - 1 Wall	Polyamide (PA66) Nylon 6/6 Glass Filled	Solder	7 A	0.3 in	7.62 mm	Header	Friction Lock	1	3.2 mm	0.126 in	0.156 in	3.96 mm	Board to Cable/Wire	Male Pin	Square	White	10	11.4 mm	0.449 in	Through Hole Right Angle	All	85 °C	-40 °C	Brass
Adam Tech LHD-10-TS	UL94 V-2	Tin	Shrouded - 1 Wall	Polyamide (PA66) Nylon 6/6	Solder	7 A			Header	Friction Lock	1	3.6 mm		0.156 in	3.96 mm	Board to Cable/Wire	Male Pin	Square	White	10			Through Hole	All	105 ░C	-40 °C	Brass	0.142 in	0.715 "	18.16 mm	0.448 in	11.38 mm	0.425 in	10.8 mm
Adam Tech LHD-10-TRA	UL94 V-2		Shrouded - 1 Wall	Polyamide (PA66) Nylon 6/6 Glass Filled	Solder	7 A	0.3 in	7.62 mm	Header	Friction Lock	1	3.2 mm	0.126 in	0.156 in	3.96 mm	Board to Cable/Wire	Male Pin	Square	White	10	11.4 mm	0.449 in	Through Hole Right Angle	All	85 °C	-40 °C	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
