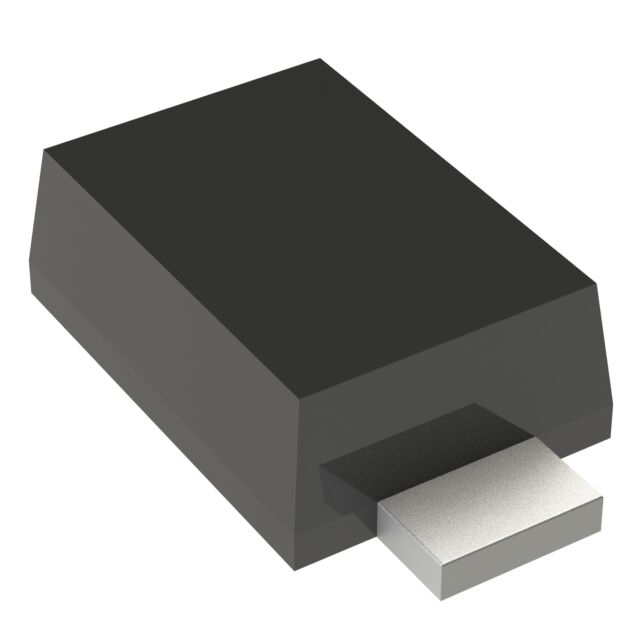

PZS5215BCH_R1_00001
ActivePanjit International Inc.
DIODE ZENER 15V 500MW SOD323HE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PZS5215BCH_R1_00001
ActivePanjit International Inc.
DIODE ZENER 15V 500MW SOD323HE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PZS5215BCH_R1_00001 |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA |
| Impedance (Max) (Zzt) [Max] | 30 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-323F, SC-90 |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | SOD-323HE |
| Tolerance | 5 % |
| Voltage - Zener (Nom) (Vz) | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.25 | |
| Digi-Reel® | 1 | $ 0.25 | ||
| Tape & Reel (TR) | 5000 | $ 0.04 | ||
| 10000 | $ 0.04 | |||
| 15000 | $ 0.03 | |||
| 25000 | $ 0.03 | |||
| 35000 | $ 0.03 | |||
| 50000 | $ 0.03 | |||
| 125000 | $ 0.03 | |||
Description
General part information
PZS5215 Series
Zener Diode 15 V 500 mW ±5% Surface Mount SOD-323HE
