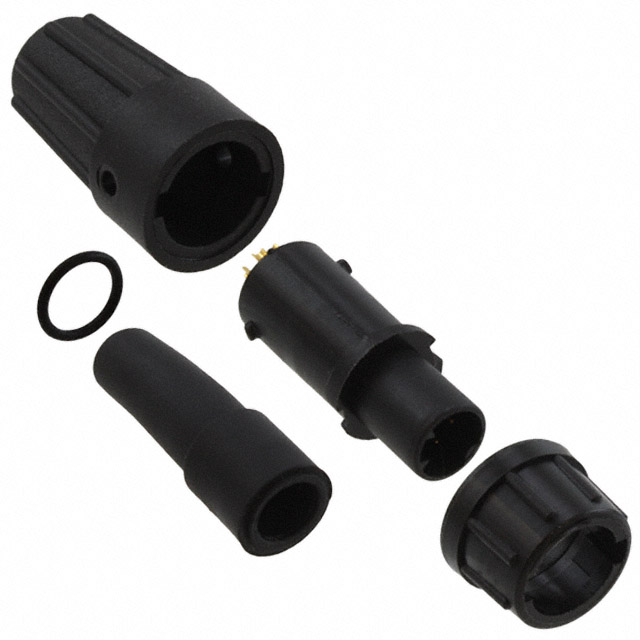

16982-6PG-522
ActiveConxall/Switchcraft
CONN PLUG MALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
16982-6PG-522
ActiveConxall/Switchcraft
CONN PLUG MALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 16982-6PG-522 |
|---|---|
| Applications | Medical, Data, Instrumentation, Industrial |
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [Max] [diameter] | 5.84 mm |
| Cable Opening [Max] [diameter] | 0.23 in |
| Cable Opening [Min] [diameter] | 0.22 in |
| Cable Opening [Min] [diameter] | 5.59 mm |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.99 | |
| 10 | $ 13.28 | |||
| 25 | $ 12.77 | |||
| 50 | $ 12.26 | |||
| 100 | $ 11.58 | |||
| 300 | $ 10.56 | |||
| 500 | $ 9.88 | |||
| 1000 | $ 9.06 | |||
Description
General part information
16982-6P Series
6 Position Circular Connector Plug, Male Pins Solder Cup
