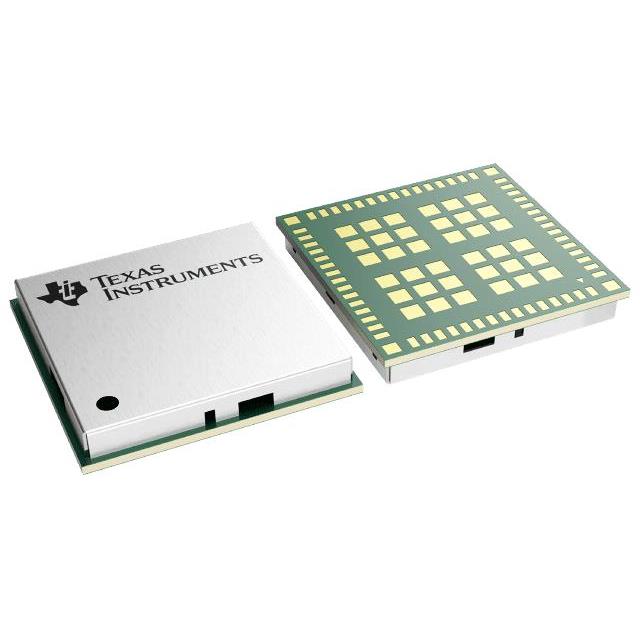

WL1805MODGBMOCR

Active

Texas Instruments

WILINK™ 8 SINGLE BAND, 2X2 MIMO WI-FI® MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsWL1835MODCOM8 WLAN MIMO/BT Module Board (Rev. F)WL18x1MOD, WL18x5MOD WiLink™ 8 Single-Band Combo Module – Wi-Fi®, Bluetooth®, and Bluetooth Low Energy (LE) datasheet (Rev. N)+11

WL1805MODGBMOCR

Active

Texas Instruments

WILINK™ 8 SINGLE BAND, 2X2 MIMO WI-FI® MODULE

Deep-Dive with AI

DocumentsWL1835MODCOM8 WLAN MIMO/BT Module Board (Rev. F)WL18x1MOD, WL18x5MOD WiLink™ 8 Single-Band Combo Module – Wi-Fi®, Bluetooth®, and Bluetooth Low Energy (LE) datasheet (Rev. N)+11

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WL1805MODGBMOCR

Current - Receiving [Max]	85 mA
Current - Receiving [Min]	49 mA
Current - Transmitting [Max]	420 mA
Current - Transmitting [Min]	238 mA
Data Rate	54 Mbps
Frequency	2.4 GHz
Modulation	CCK, GFSK, OFDM, DSSS
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Package / Case	100-SMD Module
Power - Output	17.3 dBm
Protocol	802.11b/g/n, Bluetooth 4.2
RF Family/Standard	WiFi, Bluetooth
Sensitivity	-96.3 dBm
Serial Interfaces	SDIO, UART
Voltage - Supply [Max]	4.8 V
Voltage - Supply [Min]	2.9 V

WL1805MOD Series

WiLink™ 8 single band, 2x2 MIMO Wi-Fi® module

Part	Modulation	Serial Interfaces	Current - Receiving [Max]	Current - Receiving [Min]	Data Rate	Sensitivity	Package / Case	Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Protocol	Current - Transmitting [Max]	Current - Transmitting [Min]	Power - Output	RF Family/Standard	Mounting Type
Texas Instruments WL1805MODGBMOCT	CCK DSSS GFSK OFDM	SDIO UART	85 mA	49 mA	54 Mbps	-96.3 dBm	Module	2.4 GHz	2.9 V	4.8 V	-20 C	70 °C	802.11b/g/n Bluetooth 4.2	420 mA	238 mA	17.3 dBm	Bluetooth WiFi	Surface Mount
Texas Instruments WL1805MODGBMOCR	CCK DSSS GFSK OFDM	SDIO UART	85 mA	49 mA	54 Mbps	-96.3 dBm	100-SMD Module	2.4 GHz	2.9 V	4.8 V	-20 C	70 °C	802.11b/g/n Bluetooth 4.2	420 mA	238 mA	17.3 dBm	Bluetooth WiFi	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1200	$ 11.40
Texas Instruments	LARGE T&R	1	$ 14.09
		100	$ 12.31
		250	$ 9.49
		1000	$ 8.49

Description

General part information

WL1805MOD Series

The certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi®andBluetooth®coexistence (WL1835MOD only) in a power-optimized design. The WL18x5MOD device is a 2.4-GHz module, two antenna solution. The device is FCC, IC, ETSI/CE, and TELEC certified for AP and client. TI offers drivers for high-level operating systems such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties.
