1219/15C SL005
ActiveALPHA WIRE
MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 15 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M
Deep-Dive with AI
Search across all available documentation for this part.
1219/15C SL005
ActiveALPHA WIRE
MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 15 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1219/15C SL005 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 6.86 mm |
| Jacket (Insulation) Diameter [diameter] | 0.27 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 15 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1219/15C Series

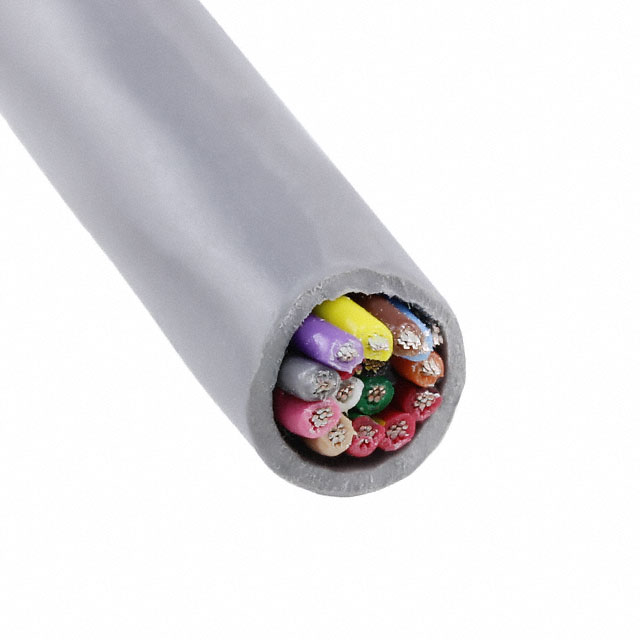

The 1219/15C SL005 is a 15-core Shielded Cable with tinned copper conductor and a PVC insulator. This multi-core cable comes with a slate PVC jacket, aluminium/Mylar tape foil shield and foil facing outward.
