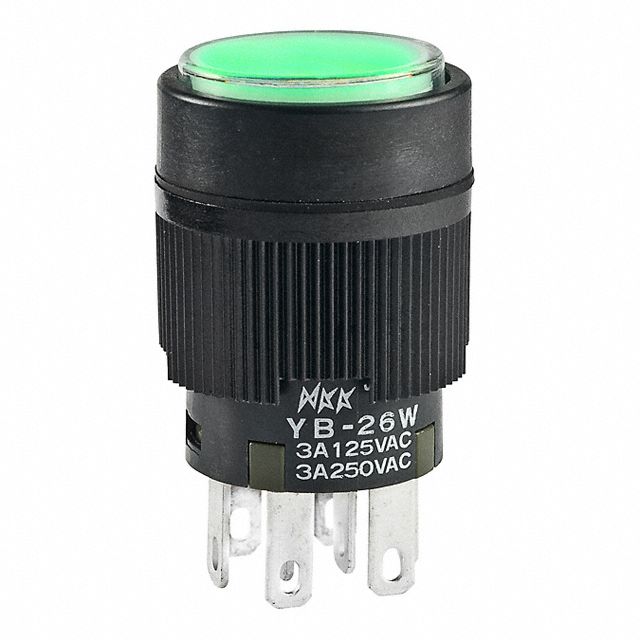

YB26WCKW01-5F-JF

Active

NKK Switches

PUSHBUTTON SWITCH, YB SERIES, 16 MM, DPDT, ON-ON, ROUND, TRANSPARENT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet YB Series Short Body PB +1

YB26WCKW01-5F-JF

Active

NKK Switches

PUSHBUTTON SWITCH, YB SERIES, 16 MM, DPDT, ON-ON, ROUND, TRANSPARENT

Deep-Dive with AI

DocumentsDatasheet YB Series Short Body PB +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB26WCKW01-5F-JF

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.2 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB26WC Series

Part	Actuator Marking	Voltage Rating - AC	Features	Voltage Rating - DC	Ingress Protection	Mounting Type	Type	Illumination Voltage (Nominal)	Mechanical Life	Electrical Life	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Circuit	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Termination Style	Termination Style	Termination Style	Switch Function	Illumination Type, Color
NKK Switches YB26WCKG01-2CF24-JB	No Marking	28 V	Voltage Reduction Lighting	28 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	Illuminated Standard	24 V	200000 Cycles	100000 Cycles	0.4 VA	16 mm	DPDT	Clear	50 °C	-25 °C	Button Round	0.11 in	Quick Connect Solder	2.8 mm	On-On	Green/Red LED
NKK Switches YB26WCKW01-5F-JF	No Marking	125 V	Voltage Reduction Lighting	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	Illuminated Standard	2.2 VDC	200000 Cycles	100000 Cycles	3 A	16 mm	DPDT	Clear	50 °C	-25 °C	Button Round	0.11 in	Quick Connect Solder	2.8 mm	On-On	Green LED
NKK Switches YB26WCKW03-5C12-JC	No Marking	125 V	Voltage Reduction Lighting	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	Illuminated Standard	12 VDC	200000 Cycles	100000 Cycles	3 A	16 mm	DPDT	Clear (Red Filter/Diffuser)	50 °C	-25 °C	Button Round		PC Pin		On-On	LED Red
NKK Switches YB26WCKW03	No Marking	125 V	Voltage Reduction Lighting	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	Standard		200000 Cycles	100000 Cycles	3 A	16 mm	DPDT		70 °C	-25 °C	Plunger for Cap		PC Pin		On-On
NKK Switches YB26WCKW01-5F12-JB	No Marking	125 V	Voltage Reduction Lighting	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	Illuminated Standard	12 VDC	200000 Cycles	100000 Cycles	3 A	16 mm	DPDT	Clear	50 °C	-25 °C	Button Round	0.11 in	Quick Connect Solder	2.8 mm	On-On	Green LED
NKK Switches YB26WCKW01-1F02-JF	No Marking	125 V	Voltage Reduction Lighting	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	Illuminated Standard	2 VDC	200000 Cycles	100000 Cycles	3 A	16 mm	DPDT	Clear	50 °C	-25 °C	Button Round	0.11 in	Quick Connect Solder	2.8 mm	On-On	Green LED
NKK Switches YB26WCKW01-5F05-JF	No Marking	125 V	Voltage Reduction Lighting	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	Illuminated Standard	5 VDC	200000 Cycles	100000 Cycles	3 A	16 mm	DPDT	Clear	50 °C	-25 °C	Button Round	0.11 in	Quick Connect Solder	2.8 mm	On-On	Green LED
NKK Switches YB26WCKW01-5C-JB	No Marking	125 V	Voltage Reduction Lighting	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	Illuminated Standard	1.9 VDC	200000 Cycles	100000 Cycles	3 A	16 mm	DPDT	Clear	50 °C	-25 °C	Button Round	0.11 in	Quick Connect Solder	2.8 mm	On-On	LED Red
NKK Switches YB26WCKW01/CUL	No Marking	125 V	Voltage Reduction Lighting	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	Standard		200000 Cycles	100000 Cycles	3 A	16 mm	DPDT		70 °C	-25 °C	Plunger for Cap	0.11 in	Quick Connect Solder	2.8 mm	On-On
NKK Switches YB26WCKW01-6B-JB	No Marking	125 V	Voltage Reduction Lighting	30 V	IP65 - Dust Tight Water Resistant	Panel Mount Front	Illuminated Standard	3.3 VDC	200000 Cycles	100000 Cycles	3 A	16 mm	DPDT	Clear	50 °C	-25 °C	Button Round	0.11 in	Quick Connect Solder	2.8 mm	On-On	LED White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.88
Newark	Each	1	$ 47.13
		5	$ 42.03
		10	$ 40.60
		25	$ 38.36
		50	$ 35.70
		100	$ 31.62
		250	$ 28.36

Description

General part information

YB26WC Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
