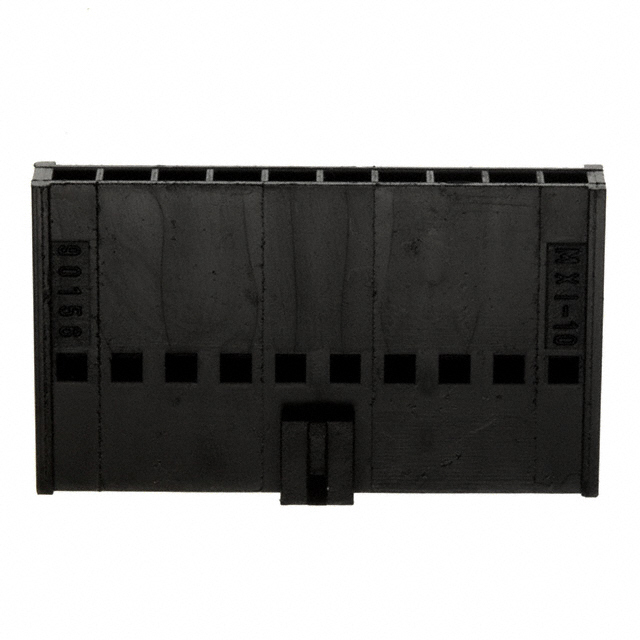

0901560150 - 90156-0150

0901560150

Active
Molex

CONN HOUSING F 10 POS 2.54MM CRIMP ST CABLE MOUNT BLACK C-GRID III™ BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
0901560150 - 90156-0150

0901560150

Active
Molex

CONN HOUSING F 10 POS 2.54MM CRIMP ST CABLE MOUNT BLACK C-GRID III™ BAG

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification0901560150
ColorBlack
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLocking Ramp
Insulation MaterialPolyphenylene Oxide (PPO)
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions10
Number of Rows1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Pitch [x]2.54 mm
Pitch [x]0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 0.56
10$ 0.52
25$ 0.51
DigikeyBulk 1$ 1.29
10$ 0.97
25$ 0.87
50$ 0.81
100$ 0.75
250$ 0.69
500$ 0.65
1000$ 0.61
2500$ 0.57

Description

General part information

90156 Series

10 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources
