56S209-306N5

Active

Rosenberger

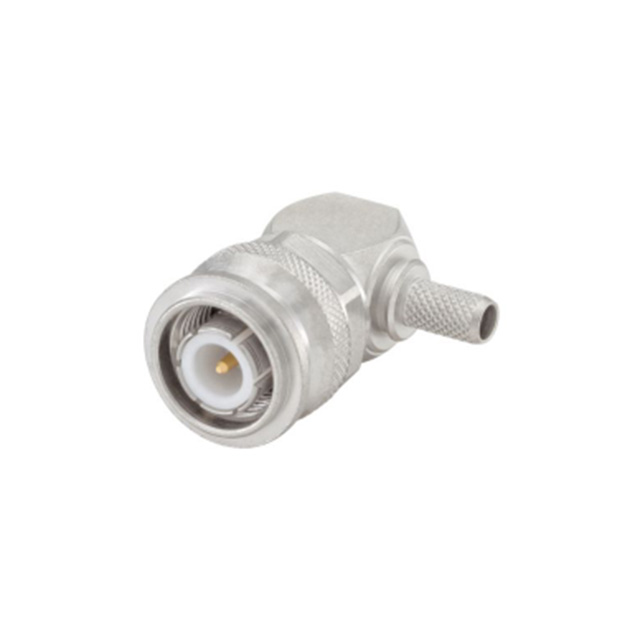

CONN TNC PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN TNC PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	56S209-306N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	141
Cable Group	RG-58C
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Center Contact Plating	Number of Ports	Cable Group	Cable Group	Includes	Contact Termination	Center Contact Material	Housing Color	Frequency - Max [Max]	Connector Style	Impedance	Shield Termination	Body Finish	Body Material	Insertion Loss	Dielectric Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Voltage Rating	Mating Cycles
Rosenberger 56S209-306N5	Gold	1	141	RG-58C	1 Connector 1 End Cap 1 Ferrule	Solder	Brass	Silver	10 GHz	TNC	50 Ohms	Crimp	White Bronze	Brass	0.05 dB	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	Male Pin Plug	500 V	500
Rosenberger 56S209-308N5	Gold	1	223 400	RG-142B	1 Connector 1 End Cap 1 Ferrule	Solder	Brass	Silver	10 GHz	TNC	50 Ohms	Crimp	White Bronze	Brass	0.05 dB	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	Male Pin Plug	500 V	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 11.44

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
